UMH160UIG

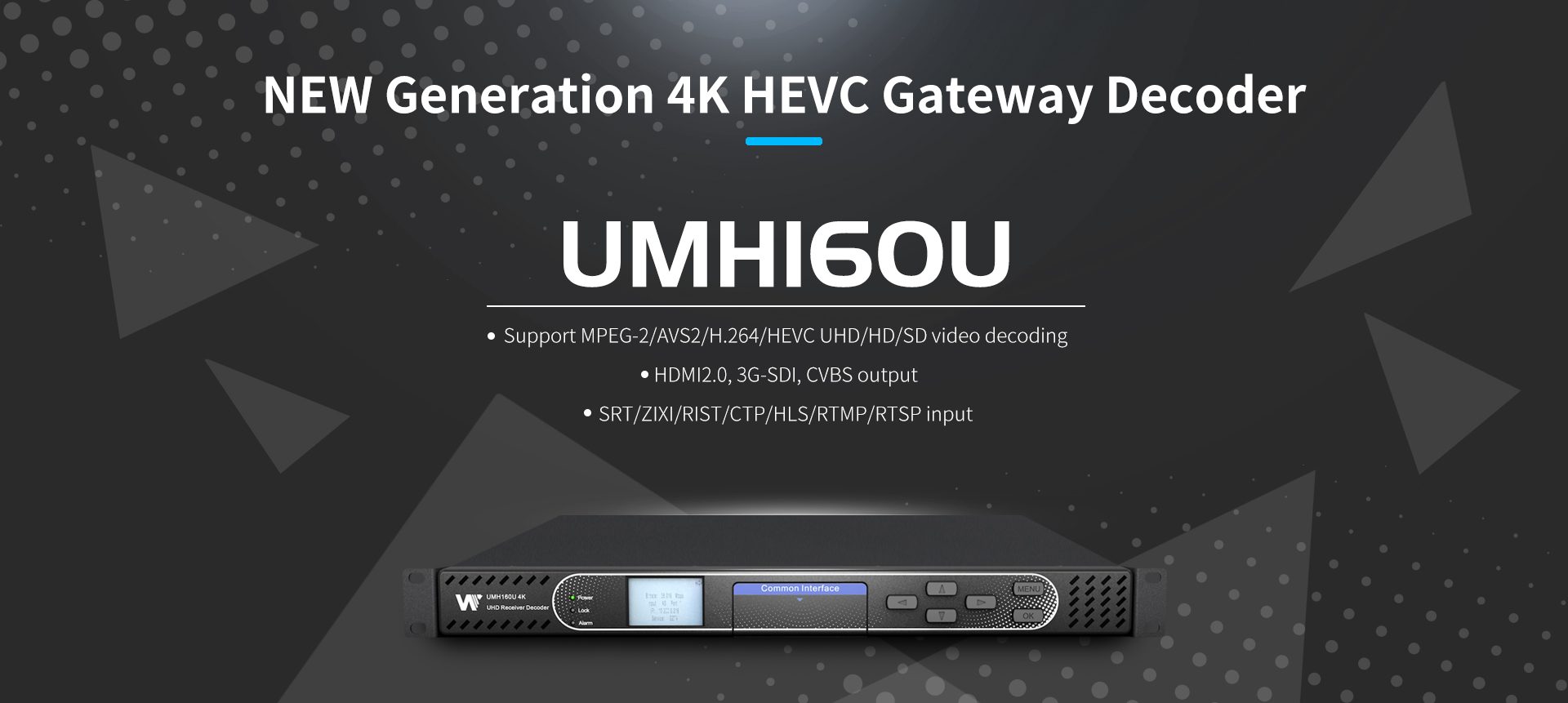

4K UHD Receiver/Decoder
4K UHD Receiver/Decoder
4K UHD Receiver/Decoder

UMH160UIG

UMH160U is a powerful and cost-effective 4K UHD receiver/decoder that supports MPEG-2/H.264/H.265/ AVS+/AVS2 SD/HD/UHD video decoding and major audio decoding. With ample tuner input options and multiple input/output interfaces, it can achieve the RF signal reception, program descrambling, multiplexing, downscaling and decoding output. With IP-based stream processing and management interfaces, it is ideal to support advanced content distribution, 4K decoding, content remultiplexing, digital signal turnaround and transmission via an all-IP-headend system.
Inquire Now

4K UHD Receiver/Decoder



INTRODUCTION
UMH160U is a powerful and cost-effective 4K UHD receiver/decoder that supports MPEG-2/H.264/H.265/ AVS+/AVS2 SD/HD/UHD video decoding and major audio decoding. With ample tuner input options and multiple input/output interfaces, it can achieve the RF signal reception, program descrambling, multiplexing, downscaling and decoding output. With IP-based stream processing and management interfaces, it is ideal to support advanced content distribution, 4K decoding, content remultiplexing, digital signal turnaround and transmission via an all-IP-headend system.



FEATURES

Receiving

  • Multiple tuner options to support DVB-S2X/S2/S/T2/T/C, DTMB, 8VSB and ISDB-T
  • Supports SRT/ZIXI/RIST/HLS/RTMP/RTSP input
  • Supports redundant backup between any two input sources
  • PID auto update
  • Multiple presettings
  • Supports T2-MI transport stream decapsulation



Data Processing

  • Two common interfaces support multi-channel descrambling, compatible with popular CAM modules
  • Embedded BISS-1 & BISS-E supports TS & Service level descrambling
  • Cherry Picking/PID Filtering
  • PSI/SI/PSIP processing and regeneration
  • Supports TS & Service multiplexing
  • Supports TS & EIT pass-through



Output

  • MPEG-2/H.264/H.265/AVS+/AVS2 UHD/HD/SD video decoding
  • HDMI2.0, 3G-SDI, CVBS output (Either HDMI/SDI or CVBS can be output)
  • SDI output with 1 embedded audio and expandable to 2 embedded audios*
  • Up to 2 pairs of balanced analogue audio and 2 pairs of unbalanced AES/EBU audio output via DB15 connector*
  • Up to 2 pairs of unbalanced analog audio output via BNC connector*
  • Multicast and unicast broadcasting in LAN and WAN network via two GbE ports
  • GPI alarm output (reserved for future use)
  • Two TS over IP output ports
  • Two ASI output port

* Currently supports 1 pair of audio, 2 pairs of audio is a future option.



Management
  • 1 Ethernet 10/100Base-TX, RJ45
  • Web-based NMS
  • Front panel LCD screen and press buttons
  • SNMP support for system integration
  • In-band remote control*

APPLICATION
4K UHD Receiver/Decoder











Resources Download
Manual Introduction Slides









Softare Versions

The latest SW version of UMH160U-IG is v1.1.3.



Update

Fixed some known issues, including:

1. Support BISS descramble feature.
2. Support SNMP feature.
3. Support Cardless CA feature.

4. Resolved the issue that when DVB-S2X tuner receive the total bitrate was higher than 130M, the encoding would be abnormal.
5. Resolved the issue that when switch the SDI output to CVBS output, the SDI output would be grainy screen.



Notes: Please contact your distributor or Wellav sales to get the softwares and release notes.







Model Number Software Version Release Note

Integrated Receiving Decoder


UMH160U-IG
 V1.1.3
CX-TXS-00_1.5.3-10343.zip		 V1.2. pdf
