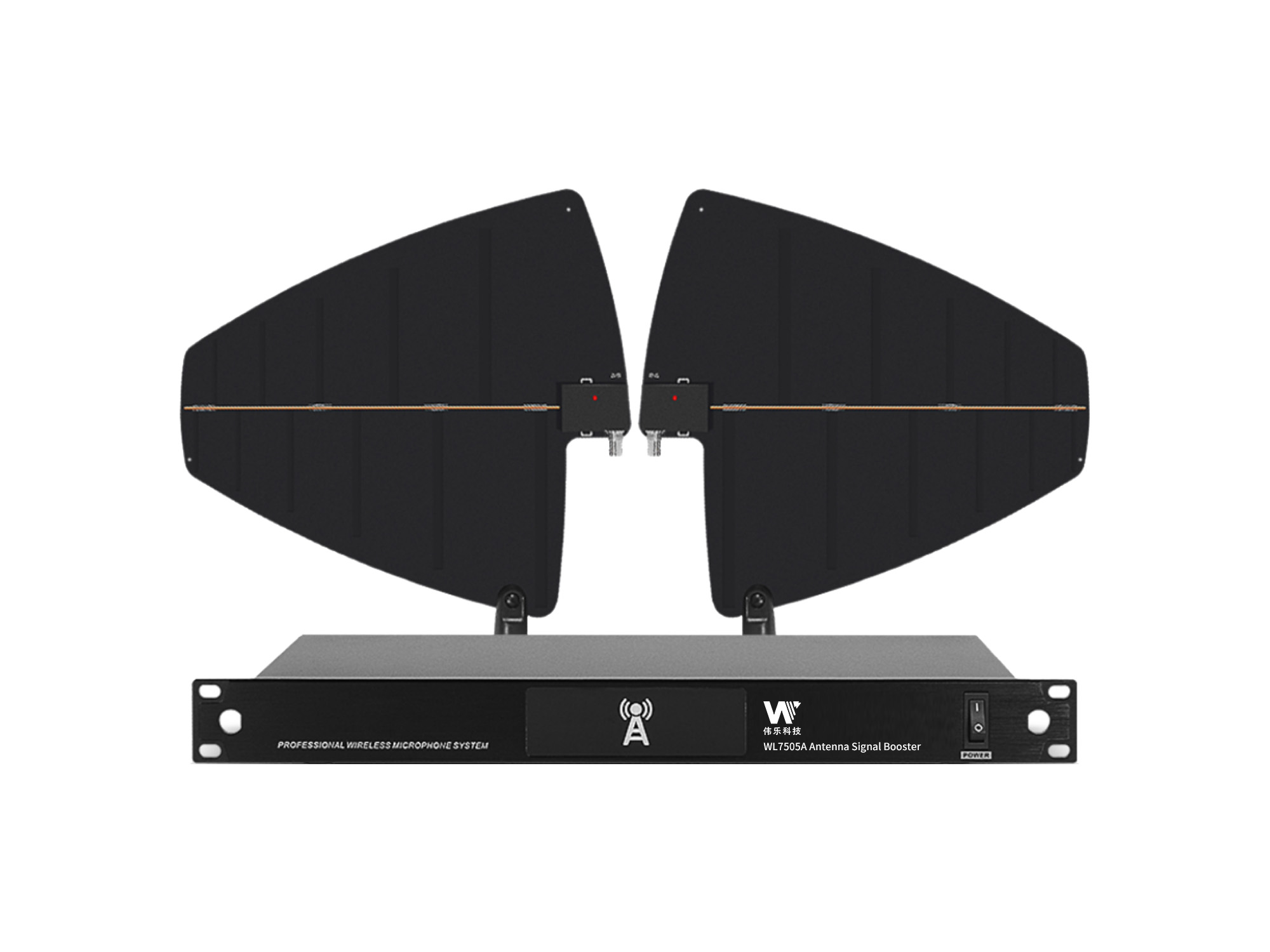

MIC-SE-I-04L
To amplify audio signal reception for wireless microphones, with a non-waterproof antenna. Compatible exclusively with the Wireless Paging Microphone (MIC-W-H-02L).
To amplify audio signal reception for wireless microphones, with a non-waterproof antenna. Compatible exclusively with the Wireless Paging Microphone (MIC-W-H-02L).
|
Antenna |
|
|
Antenna Type |
LPDA directional antenna |
|
Frequency Range |
500 MHz–1 GHz |
|
Gain |
6–10 dB |
|
Impedance |
50 Ω |
|
Voltage Standing Wave Ratio (VSWR) |
≤1.7:1 |
|
Directivity |
Oval 180° |
|
Polarization |
Vertical |
|
Number of Director Segments |
11 |
|
Connection Terminal |
Fixed right-angle BNC female connector |
|
Host |
|
|
Antenna Splitter |
1 in 2 out |
|
Frequency Range |
500 MHz–1 GHz |
|
Gain |
6–10 dB |
|
Power Supply |
12 V DC / 2–3 A |
|
Dimension (W×H×D) |
420×44×230 mm |
|
Weight |
1.9 kg |
