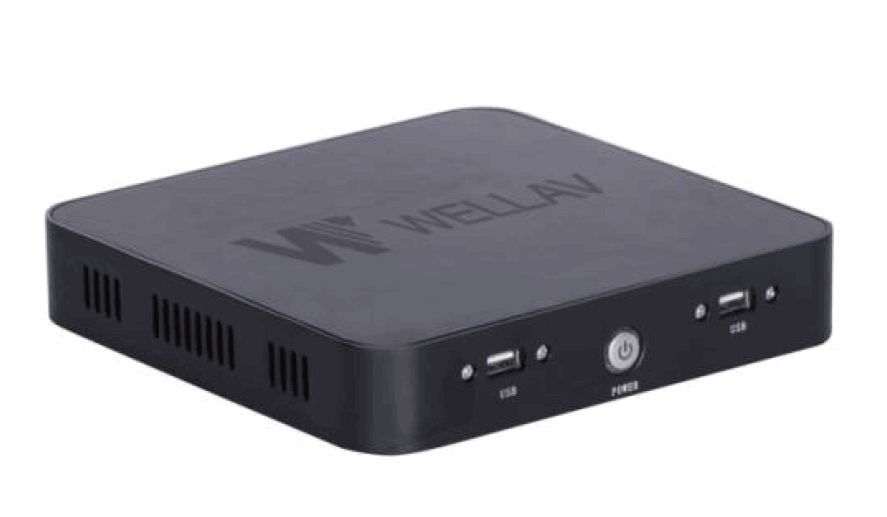

ACP-HW-Mini
The Mini audio control host, featuring a compact, energy-efficient, and low-noise design, can be placed in any area of the master control room.
It enables centralized management of all IP terminals across the system, full control over all audio input sources, and custom configuration of paging zone groupings for flexible, unified network audio control.
FEATUERS
|
Core Hardware |
|
|
CPU |
Intel N95, 4 cores/4 threads, 3.40GHz turbo |
|
Memory |
8GB DDR4 |
|
Storage |
Kingston 128GB SSD |
|
Display & Input & Output |
|
|
Interfaces |
Network: 1× RJ45 (10/100/1000Mbps auto-negotiation) |
|
Display: 1× VGA output, 1× HDMI output |
|
|
Serial : 2× COM |
|
|
USB: 2× USB 2.0, 2× USB 3.0 |
|
|
Microphone: 1× 3.5 mm input, 1×3.5 mm output |
|
|
System & Management |
|
|
Operating System |
Windows 10/11 |
|
Management |
Web-GUI Management |
|
Power & Environment |
|
|
Power Supply |
12 V DC / 5 A |
|
Power Consumption |
Max. 15W |
|
Operation Temperature |
-10–50℃ (14–122℉) |
|
Storage Temperature |
-20–60℃ (-4–140℉) |
|
Operating Humidity |
90% RH (non-condensing) |
|
Physical Characteristics |
|
|
Dimension (W×H×D) |
197×35×197 mm |
|
Weight |
1.55 kg |
*The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
