CMP200
Modular video processing platform

CMP 200

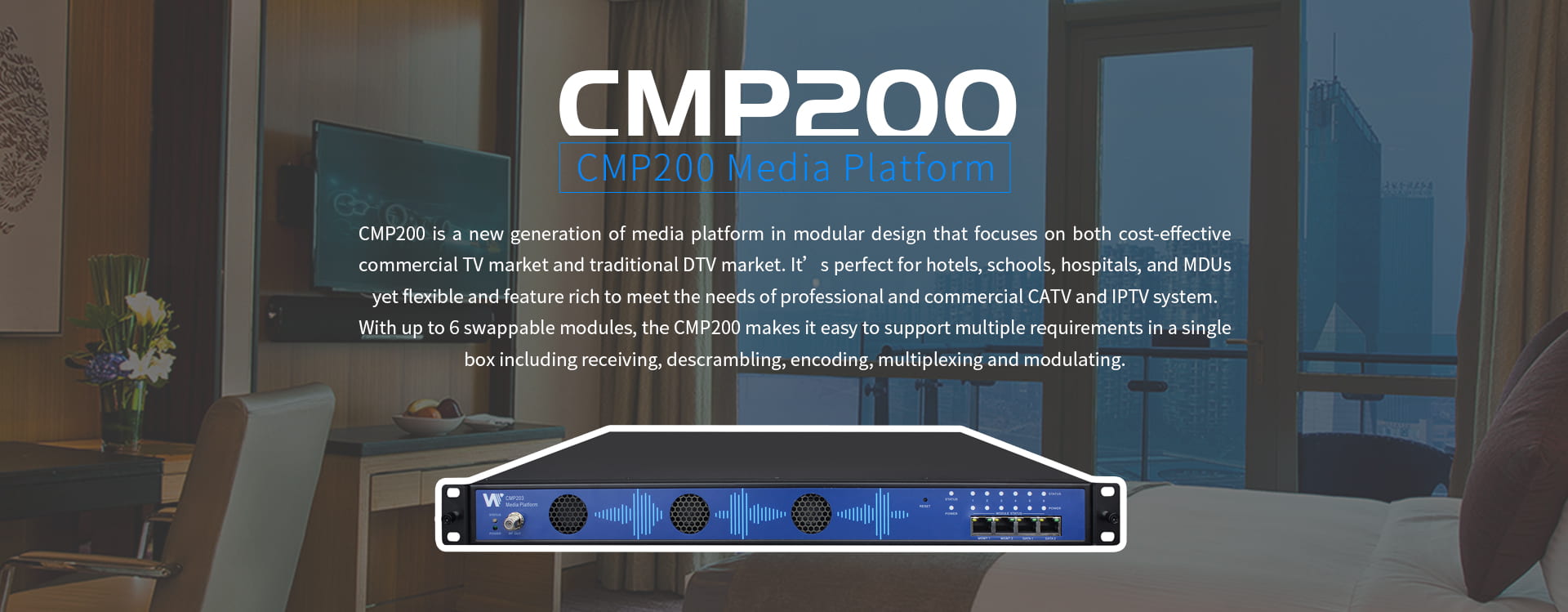

CMP200 series is the next generation of modular video processing by Wellav. The chassis comes with a single or dual power supply option and accommodates up to six modules. Using a built-in IP switch and diverse range of hot-swappable input/output options, CMP200 series is a highly flexible solution, perfect for a variety of applications including Hospitality, Education, Government, MDUs, and more. Offering an excellent balance of performance VS value, the CMP200 series is ideal for dense multi-channel encoding, HD transcoding, signal reception,digital turn around, and simultaneous IPTV + QAM distribution without an excessive price tag. Backed by a worldwide based support team and a intuitive Web-Interface, the CMP200 series  is easy for any organization to deploy and operate.



Modular video processing platform


INTRODUCTION
CMP200 series is the next generation of modular video processing by Wellav. The chassis comes with a single or dual power supply option and accommodates up to six modules. Using a built-in IP switch and diverse range of hot-swappable input/output options, CMP200 series is a highly flexible solution, perfect for a variety of applications including Hospitality, Education, Government, MDUs, and more. Offering an excellent balance of performance VS value, the CMP200 series is ideal for dense multi-channel encoding, HD transcoding, signal reception,digital turn around, and simultaneous IPTV + QAM distribution without an excessive price tag. Backed by a worldwide based support team and a intuitive Web-Interface, the CMP200 series  is easy for any organization to deploy and operate.

FEATURES
  • 19” 1RU standard rack unit
  • Dual power supplies
  • Optional 8-CH adjacent QAM/OFDM/ 8VSB/ISDB-T modulation module on front panel
  • 4 GbE Ethernet ports on front panel (2 for management, 2 for IP stream in/out)
  • 2 SFP ports on front panel
  • Supports 120 IP inputs and 120 IP outputs, SPTS/MPTS
  • 6 slots for hot-swappable functional modules on rear panel
  • Supports up to 24 HDMI® HD encoding
  • Supports up to 48 CVBS SD encoding
  • Supports reception of up to 24 coax channel frequencies (DVBC, DVB-T/T2, DVB-S/S2/S2X, ISDB-T, 8VSB)
  • User-friendly web-interface setup and module upgrades
  • Simple installation and easy configuration

APPLICATION

Modular video processing platform

















Resources Download
QSG Introduction Slides
CMP201A_Manual CMP203A_Manual









Softare Version

The latest SW versions are 1.6.x series.



Update

Fixed some known issues, including:

1. Resolved the issue that the front panel would always show red light while using the TXS-00 module.
2. Resolved the issue that after users filter out the PID on baseboard then multiplex to baseboard output, the service configuration would show error.
3. Resolved the issue that modifying the NIT table of the output channel, it would have a low possibility that the system would hang out and reboot.

......


Notes:

  1. Please contact your distributor or Wellav sales to get the softwares and release notes.
  2. When you are on the upgrade progress, please make sure the unit won't lose the power supply and have stable network connection. Otherwise, the unit will have the risk of failing to boot up.
  3. If you have any question about the software upgrade, please confirm with Wellav Support team first (support@wellav.com).
  4. If your unit is old or using the old software, we don't suggest you to do the upgrade by yourself. There will have a risk of failing to boot up.please confirm with Wellav Support team first(support@wellav.com)



Model Number Software Version Release Note
Baseboard
CMP200 Basebard
V1.6.14 V1.11.pdf (201)
    V1.11.pdf (201D)
    V1.11.pdf (203)

Receiving Modules
CR-DVBS2FTA-00A
V1.6.0 V1.2.pdf
CR-DVBS2FTA-01A
V1.6.2 V1.5.pdf
CR-DTMB-00
V1.6.0 V1.2.pdf
CR-ISDBT-00
V1.6.0 V1.3.pdf
CR-ISDBT-01
V1.6.6
V1.3.pdf
CR-DVBS2FTA-01
V1.6.2 V1.5.pdf
CR-DVBS2FTA-00
V1.6.0 V1.2.pdf
CR-DVBS2CI-01
V1.6.3 V1.7.pdf
CR-DVBS2CI-00
V1.6.0 V1.2.pdf
CR-DVBT2CI-00
V1.6.6 V1.4.pdf
CR-8VSB-00
V1.6.0 V1.4.pdf
CR-DVBC-01
V1.6.0 V1.2.pdf
CR-DVBC-00
V1.6.6 V1.3.pdf


Encoding Modules

CE-HDMI-06B
V1.6.0 V1.4.pdf
CE-CVBS-R01A
V1.6.0 V1.2.pdf
CE-HDMI-02C
V1.6.10 V1.7.pdf
CE-SDI-01
V1.6.3 V1.6.pdf
CE-SDI-00
V1.6.0 V1.5.pdf
CE-HDMI-02
V1.6.10 V1.7.pdf
CE-CVBS-03
V1.6.0 V1.7.pdf
CE-CVBS-R01
V1.6.0 V1.2.pdf
CE-HDMI-R05A
V1.6.0 V1.3.pdf
CE-HDMI-05A
V1.5.0 V1.3.pdf
CE-HDMI-R01
V1.6.4 V1.7.pdf
CE-HDMI-00
V1.5.0 V1.1.pdf
CE-CVBS-00
V1.6.0 V1.3.pdf
CE-HDMI-06
V1.6.0 V1.6.pdf


Modulating Modules

CM-QAMB-R02
V1.5.30 V1.2.pdf
CM-DTMB-03
V1.6.0 V1.1.pdf
CM-ISDBT-03
V1.6.0 V1.3.pdf
CM-OFDM-03
V1.6.0 V1.4.pdf
CM-QAMB-03
V1.6.0 V1.0.pdf
CM-QAMB-02A
V1.5.30 V1.2.pdf
CM-QAMA-R01A
V1.6.0 V1.5.pdf
CM-QAMB-R01A
V1.6.0 V1.4.pdf
CM-OFDM-R01A
V1.6.2 V1.6.pdf
CM-ISDBT-R01A
V1.6.2 V1.5.pdf
CM-QAMA-02A
V1.6.4 V1.4.pdf
CM-DTMB-R01A
V1.6.0 V1.4.pdf
CM-8VSB-R01A
V1.6.3 V1.4.pdf
CM-QAMA-03
V1.6.4 V1.3.pdf
CM-QAMB-02
V1.5.30 V1.2.pdf
CM-QAMA-02
V1.6.4 V1.4.pdf
CM-8VSB-R01
V1.6.3 V1.5.pdf
CM-ISDBT-R01
V1.6.2 V1.5.pdf
CM-OFDM-R01
V1.6.2 V1.6.pdf
CM-QAMB-R01
V1.6.0 V1.4.pdf
CM-QAMA-R01
V1.6.0 V1.5.pdf
CM-DTMB-R01
V1.6.0 V1.4.pdf
CM-QAMB-R00
V1.6.0 V1.3.pdf
CM-QAMA-R00
V1.6.4 V1.5.pdf


Other Functional Modules

CP-IP-02
V1.6.4 V1.7.pdf
CP-IP-00
V1.1.1 V1.2.pdf
CP-EIT-00
V1.6.2 V1.4.pdf
CP-CAM-00
V1.6.3 V1.6.pdf
CP-EAS-00
V1.6.0 V1.2.pdf
CP-ASI-00
V1.6.3 V1.6.pdf
