Dante/AES67 Celling Speakers

Dante/AES67 Celling Speakers

Dante/AES67 Celling Speakers

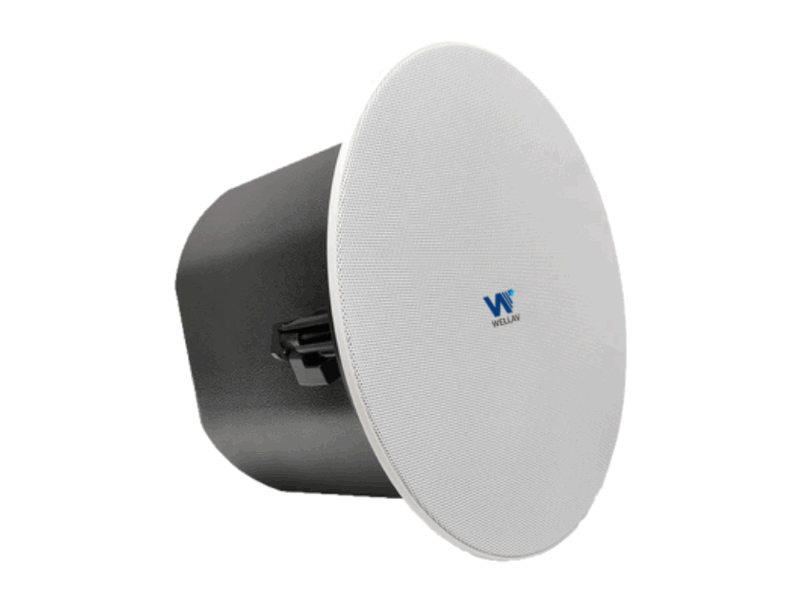

SPK-DPC-25 / SPK-APC-25



The Dante/AES67 ceiling speaker delivers clear audio via 6.5” LF/1” HF drivers and linear tech. Through a single Ethernet cable for PoE power, Dante audio and control, it extremely simplifies installation with zero messy wiring. Ideal for sound mask, background music and voice reproduction.

Inquire Now

FEATURES

  • Enables easy system management via Dante Domain Manager/Dante Controller compatibility for unified control in large-scale audio setups.
  • Ensures seamless integration with other management systems via REST API, reducing cross-platform development efforts for diverse systems.
  • Simplifies deployment with built-in amplifier and digital signal processing, eliminating external devices and optimizing audio performance.
  • Streamlines installation through POE/POE+ support, transmitting power/audio/control via one cable to cut wiring complexity and costs.
  • Delivers balanced sound quality by a 2-way driver system with a 6.5" woofer and adjustable tweeter direction, ensuring wide dispersion for background music and voice applications.
  • Offers flexible audio input with one Dante/AES67 and one analog port, supporting remote/local playback for versatile audio setups.
  • Facilitates quick safety system integration with trigger I/O, enabling fast third-party alarm system connections for emergency readiness.
  • Combines aesthetics, ease of maintenance with a removable magnetic grille, and unique fast-fit structure, fitting seamlessly while allowing quick access for upkeep.

(This product will be ready in July 2025.)

Model

SPK-DPC-25

SPK-APC-25

Audio Standard

Dante, AES67

AES67

Frequency Response (-2.5 dB)

70 Hz–20 kHz

Speaker Driver

Low Frequency: 165 mm, cone;

High Frequency: 25 mm, metal dome

Crossover Frequency

2.9 kHz (bass/treble)

Amplifier Output Power

Bass: 25 W; Treble: 10 W

Max. Output Level

104 dB SPL

Harmonic Distortion

<0.5% (@85 dB SPL at 1 m on axis)

Dispersion Angle

Horizontal 120°, Vertical 100°

Digital Signal Processing

Parametric notch;

High frequency shelf; Low frequency shelf;

Bass roll-off;

Bass tilt; Treble tilt.

Audio Input

1× RJ45 (100 Mbps) for Dante/AES67

1× 3-pin Phoenix connector for analog audio

Analog Input Impedance

10 kΩ, balanced

Analogue Input Max. Level

24 dBu

Trigger Signal In/Out

1× 3-pin Phoenix connector (short-circuit input and 24 V output)

Power Supply

PoE, IEEE 802.3af, 13 W

PoE+, IEEE 802.3at, 26 W

Standby Power Consumption

< 1 W

Operating Temperature

-6.7–40℃ (20–104℉)

Storage Temperature

-29–75℃ (20–74℃)

Dimension

⌀257×180 mm

Weight

3.08 kg

(This product will be ready in July 2025.)
