Passive Wall-Mount Speakers

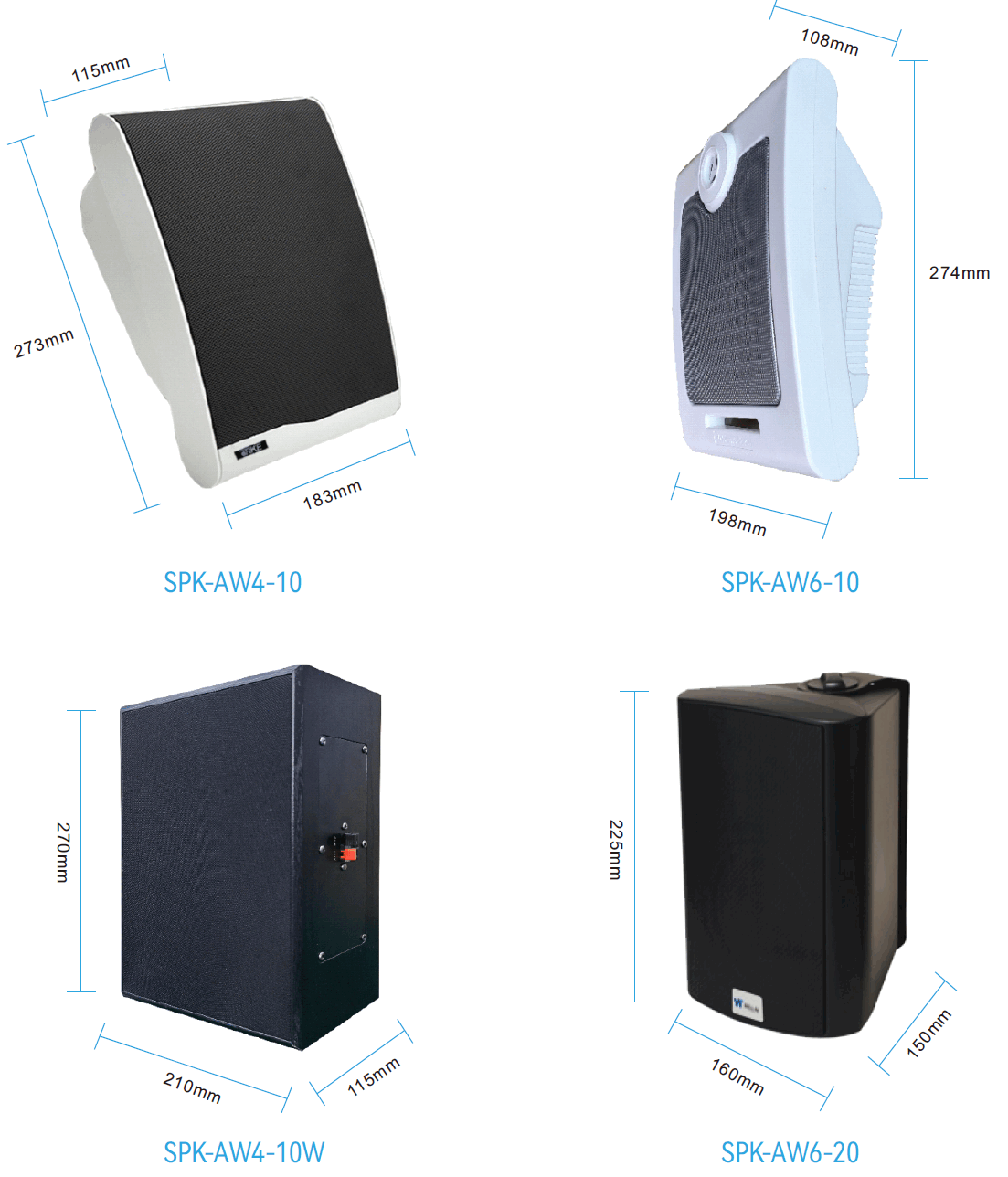

Model

SPK-AW4-10

SPK-AW6-10

SPK-AW4-10W

SPK-AW4-20

Rated Power

10 W

6–10 W

5/10 W

20 W

Output Voltage

70 V / 100 V

Speaker Driver

1× 6.5'', 1× 2''

1× 6.5''

1× 4.5''

1× 4'', 1× 1''

Sensitivity (1m, 1W)

92(±2) dB

92(±2) dB

87(±2) dB

89(±2) dB

Sound Pressure Level (SPL) (1m)

100(±2) dB

100(±2) dB

97(±2) dB

102(±2) dB

Frequency Response

160 Hz–18 kHz

160 Hz–18 kHz

80 Hz–18 kHz

80 Hz–18 kHz

Dimension (W×H×D)

273×183×115 mm

270×110×200 mm

270×210×115 mm

160×150×225 mm

Weight

1.75 kg

0.9 kg

2.0 kg

2.8 kg
