SPK-DPC-25 / SPK-APC-25

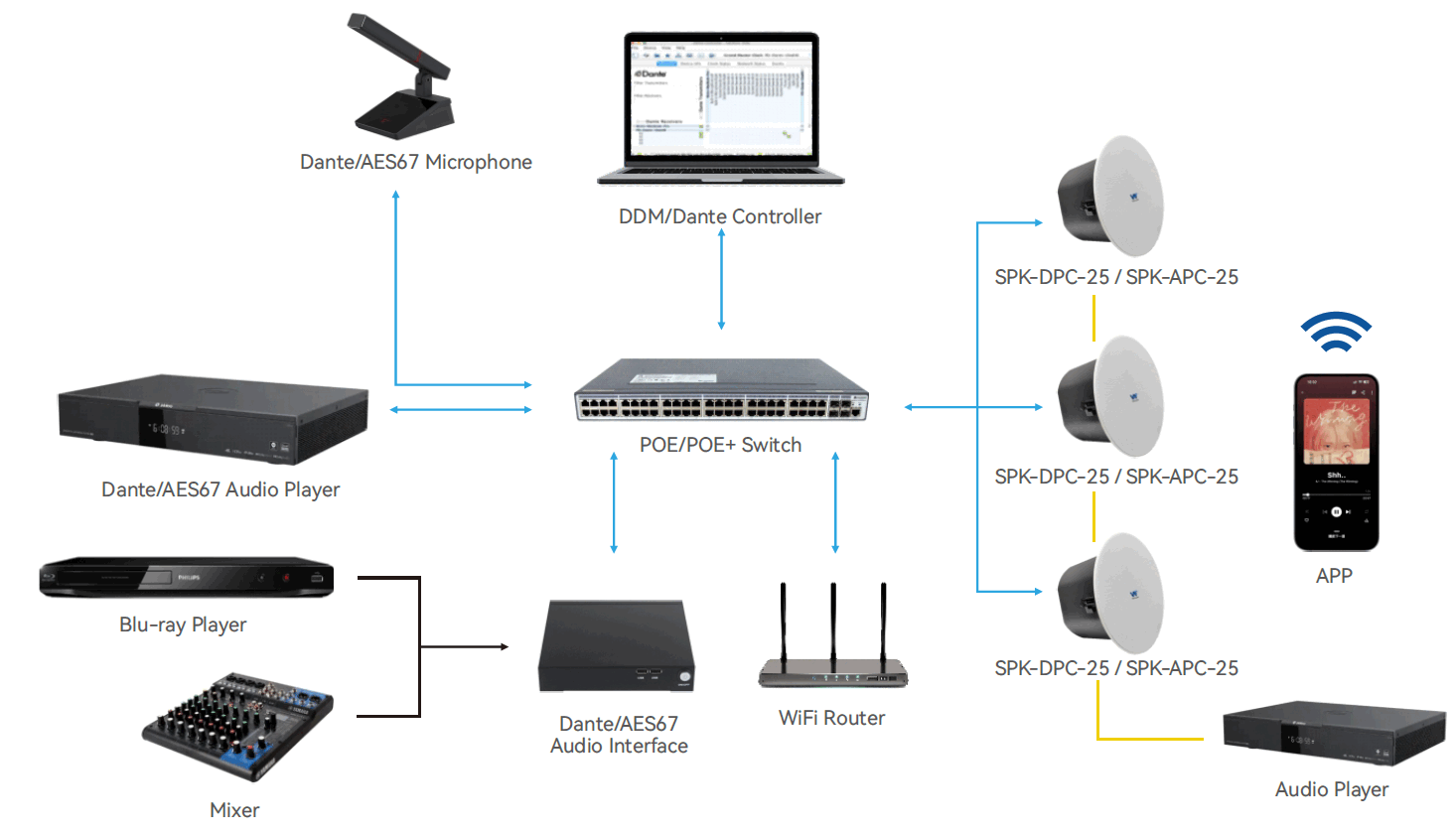

The Dante/AES67 ceiling speaker delivers clear audio via 6.5” LF/1” HF drivers and linear tech. Through a single Ethernet cable for PoE power, Dante audio and control, it extremely simplifies installation with zero messy wiring. Ideal for sound mask, background music and voice reproduction.
FEATURES
(This product will be ready in Aug. 2025)
APPLICATIONS
BGM & Announcement
Automatic Trigger-based Alert
|
Model |
SPK-DPC-25 |
SPK-APC-25 |
|
Audio Standard |
Dante, AES67 |
AES67 |
|
Frequency Response (-2.5 dB) |
70 Hz–20 kHz |
|
|
Speaker Driver |
Low Frequency: 165 mm, cone; High Frequency: 25 mm, metal dome |
|
|
Crossover Frequency |
2.9 kHz (bass/treble) |
|
|
Amplifier Output Power |
Bass: 25 W; Treble: 10 W |
|
|
Max. Output Level |
104 dB SPL |
|
|
Harmonic Distortion |
<0.5% (@85 dB SPL at 1 m on axis) |
|
|
Dispersion Angle |
Horizontal 120°, Vertical 100° |
|
|
Digital Signal Processing |
Parametric notch; High frequency shelf; Low frequency shelf; Bass roll-off; Bass tilt; Treble tilt. |
|
|
Audio Input |
1× RJ45 (100 Mbps) for Dante/AES67 1× 3-pin Phoenix connector for analog audio |
|
|
Analog Input Impedance |
10 kΩ, balanced |
|
|
Analogue Input Max. Level |
24 dBu |
|
|
Trigger Signal In/Out |
1× 3-pin Phoenix connector (short-circuit input and 24 V output) |
|
|
Power Supply |
PoE, IEEE 802.3af, 13 W PoE+, IEEE 802.3at, 26 W |
|
|
Standby Power Consumption |
< 1 W |
|
|
Operating Temperature |
-6.7–40℃ (20–104℉) |
|
|
Storage Temperature |
-29–75℃ (20–74℃) |
|
|

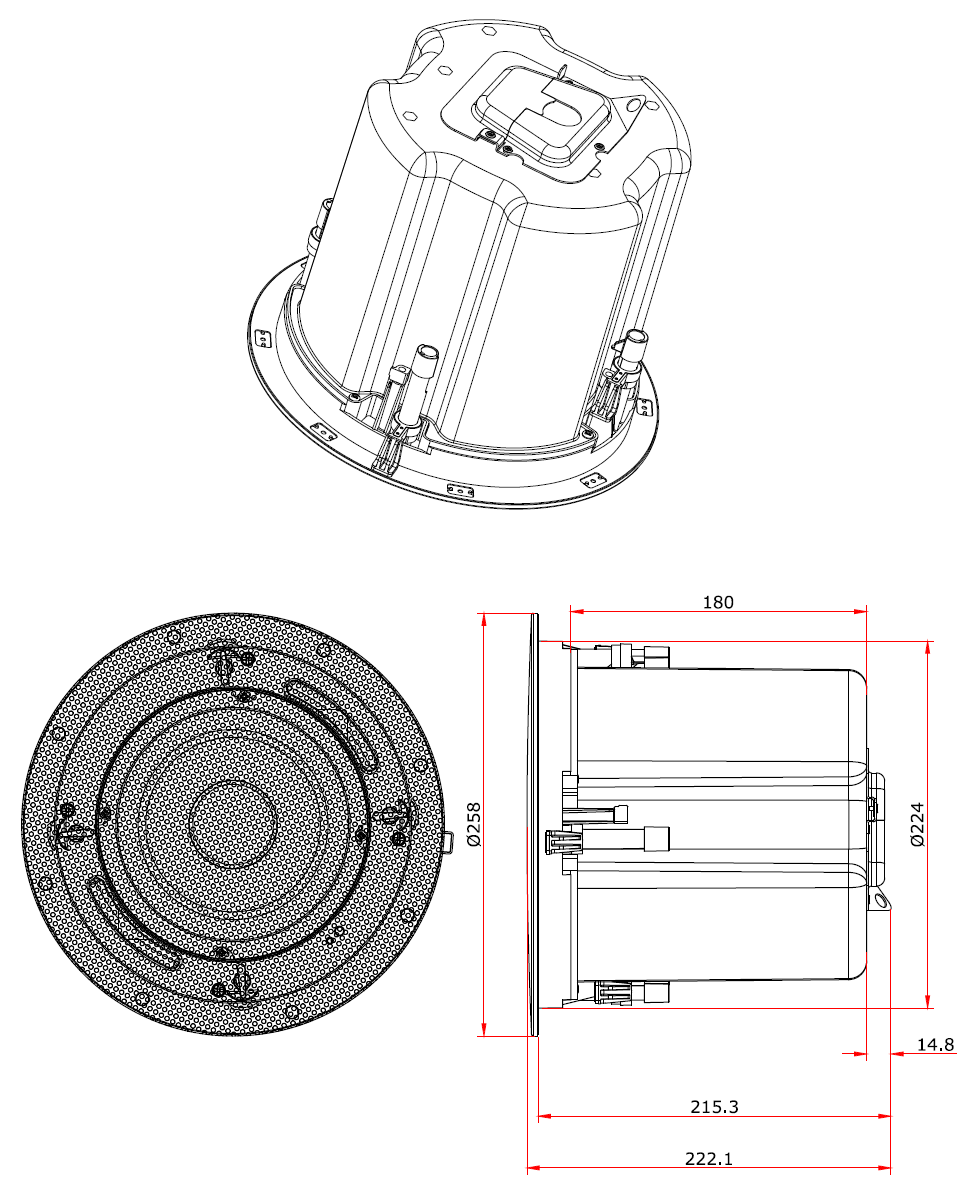

Overall Dimension (⌀×Depth) |
⌀257×180 mm |
|
|
Required Cutout Size |
⌀ 227 mm |
|
|
Weight |
3.08 kg |
|
(This product will be ready in Aug. 2025)
