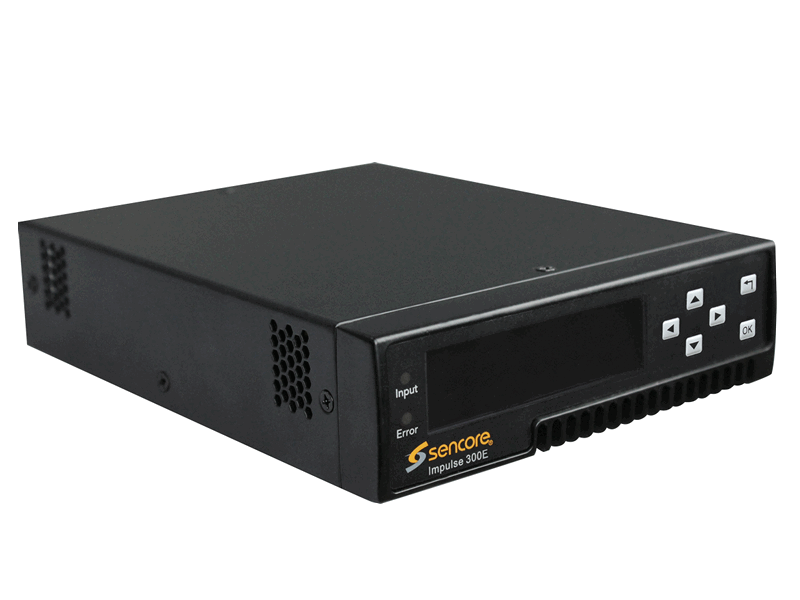

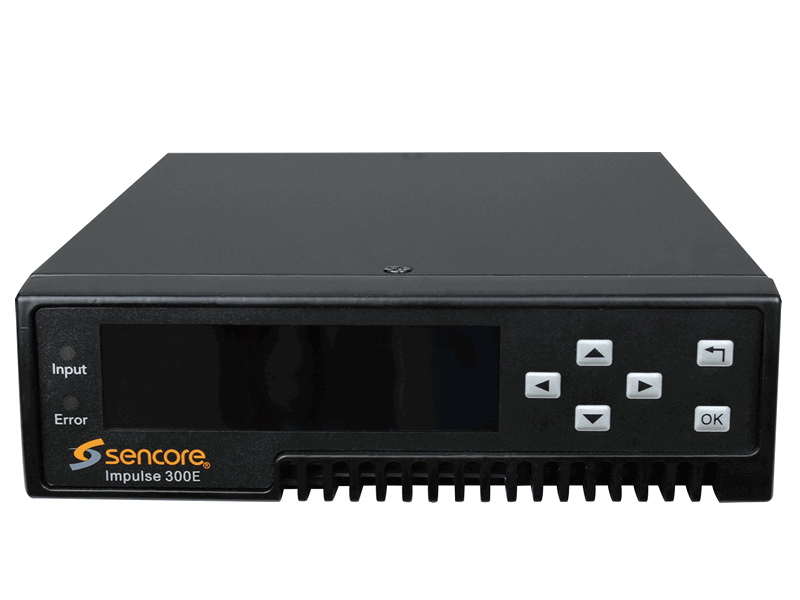

Impulse 300E

INTRODUCTION

The Impulse 300E is a cost-effective and easy-to-deploy MPEG2 and H.264/AVC encoder for acquiring, compressing and delivering baseband video and audio content. With streaming protocols such as SRT and RIST, its even easier to deliver broadcast content from remote sites or feed existing systems. Dual gigabit Ethernet ports provide infinite flexibility of both management and compressed video interfaces. An intuitive web interface is secured by HTTPS and all network services are user-configurable to ensure security on the open internet.

The Impulse 300E is ideally suited for encoding PEG channels, which have traditionally been delivered by simple devices with lackluster features and performance. The 300E is tailor-made with a small form-factor, powerful ASIC-based encoder and cutting-edge internet streaming protocols that enable better video quality at a competitive price-point.

FEATURES

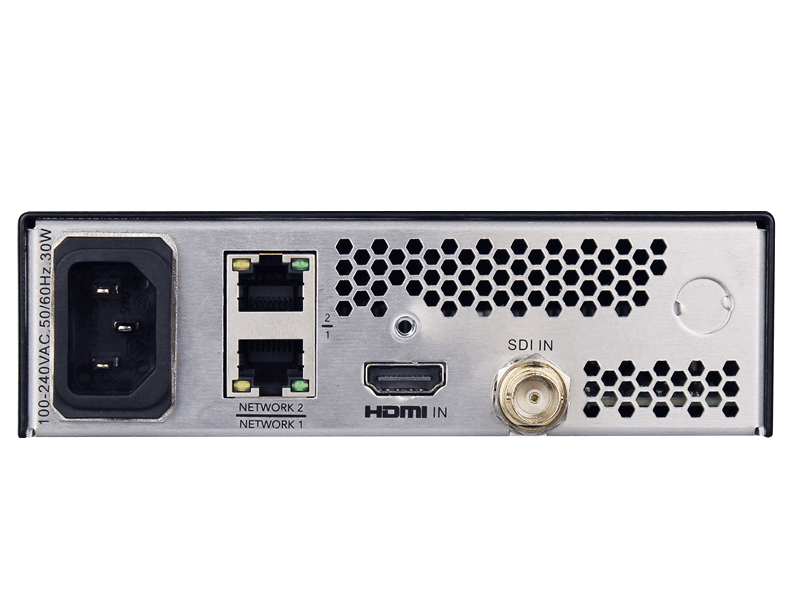

• Encode SD-SDI, HD-SDI and HDMI inputs
• Support for all of today’s most common internet delivery protocols, including SRT and RIST
• Pair with a Sencore Impulse 300D for a low-cost end-to-end delivery
• Simple and intuitive webUI for configuration and monitoring
• Automation and remote configuration ready
• Small form factor - 1/3rd RU wide and 1RU tall

APPLICATIONS

Public, Educational and Governmental (PEG) Encoding

The Impulse 300E is ideally suited for encoding of PEG channels that have traditionally been served by antiquated, feature poor devices. The small form factor, exceptional ASIC-based encoding and cutting-edge internet streaming protocol support allow for better video quality and lower delivery costs of price sensitive channels.

Remote Event Encoding

Small form factor, plug-and-play operation and internet delivery protocol support make the Impulse 300E the ideal choice for encoding remote event feeds. Simply send the Impulse 300E to a remote site, have a technician plug in the cables and the unit is up and running, delivering feeds across the open internet to a remote or cloud headend.
