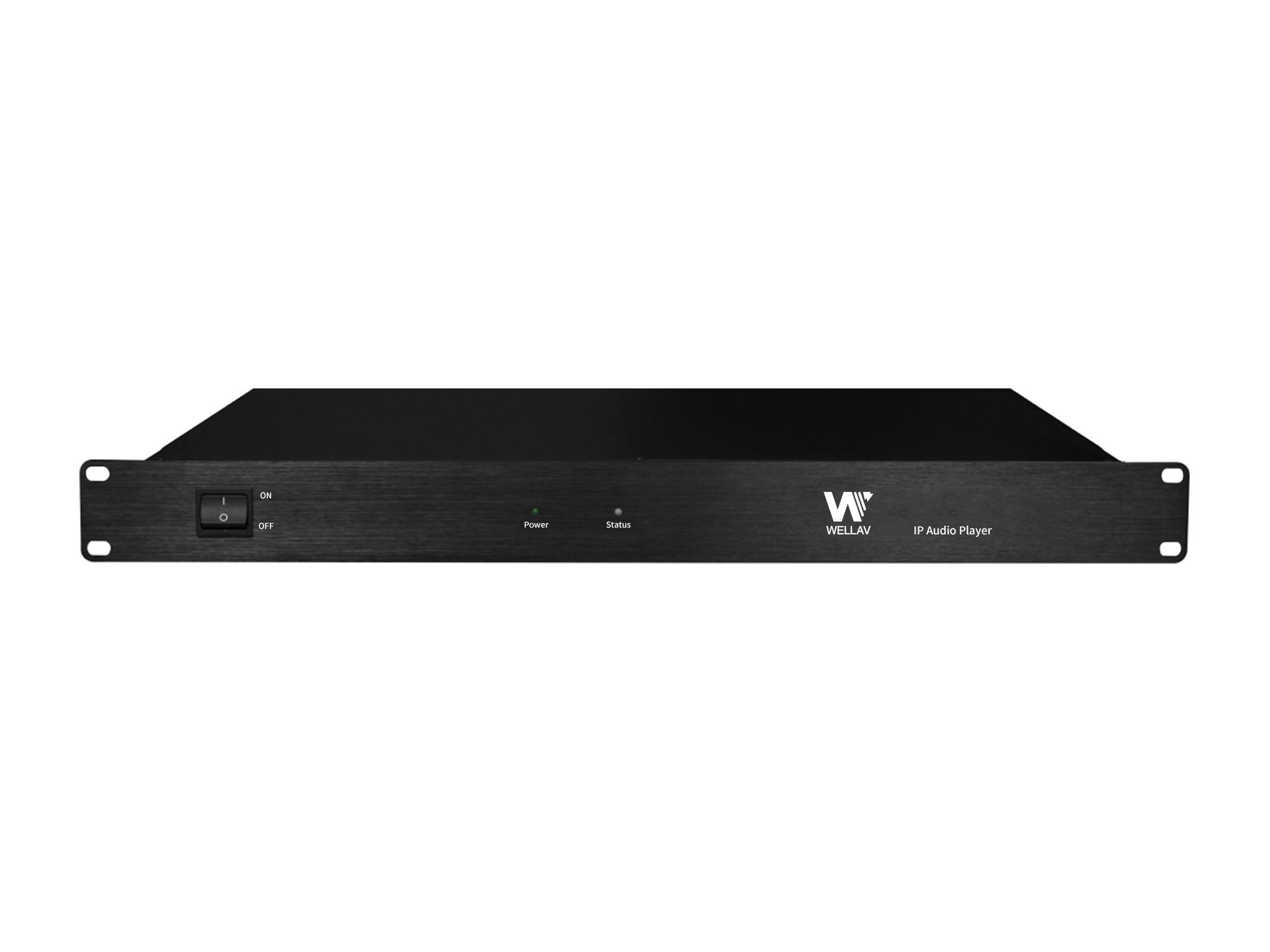

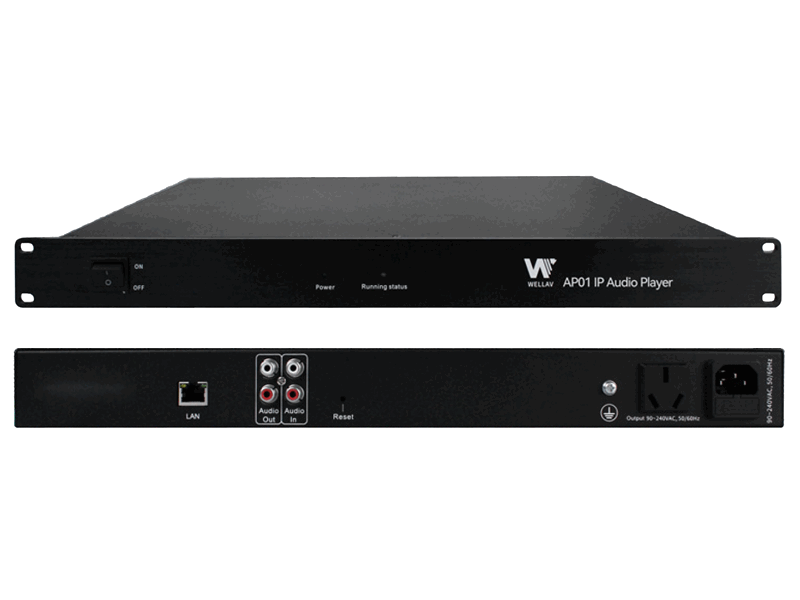

AP01
Deployed in sub-control rooms, this device communicates with the broadcast host via IP network to receive audio data, decode it into analog signals, and feed them to power amplifiers for mixing with other audio sources.
FEATURES
|
Input |
1x RAC (R+/L+) |
|
Output |
1x RAC (R+/L+) |
|
Ethernet Interface |
1x RJ45 (10/100 Mbps) |
|
Protocol |
HTTP/HTTPS, TCP/IP, UDP, ARP, ICMP, IGMP, RTSP |
|
Decoding Format |
MP3, AAC, DRA |
|
Power Requirement |
90–240 V AC, 50/60 Hz |
|
Power Consumption |
Max. 10 W |
|
Operating Temperature |
-20–50℃ (-4–122℉) |
|
Storage Temperature |
-40–60℃ (-40–140℉) |
|
Operating Humidity |
<90% RH |
|
Dimension (W×H×D) |
483x44x270 mm |
|
Weight |
2.85 kg |
*The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
