OMP500
Home Transcoder OMP500

OMP500

Multi-channel Linear Transcoder
Multi-channel Linear Transcoder
Multi-channel Linear Transcoder
Multi-channel Linear Transcoder
Multi-channel Linear Transcoder

OMP500

OMP500 is the software based multi-channel transcoder platform that supports both linear and OTT transcoding which allows to integrate different video format between networks and enable content streaming over public internet or via mobile network. Featured by B frame and de-interlacing, it can also transcode video between progressive and interlaced format seamlessly in high quality while low bandwidth. With UDP/RTP/HLS/RTSP and more IP protocol options the OMP500 can fit into any architecture to enable OTT delivery in your system. With three available models to choose from the OMP500 can enable OTT services on any budget. Ranging from a budget friendly entry level system for one OTT service to the highest performance model capable of providing up to forty OTT services.
Inquire Now
datasheet
Multi-channel Linear Transcoder


INTRODUCTION
OMP500 is the software based multi-channel transcoder platform that supports both linear and OTT transcoding which allows to integrate different video format between networks and enable content streaming over public internet or via mobile network. Featured by B frame and de-interlacing, it can also transcode video between progressive and interlaced format seamlessly in high quality while low bandwidth. With UDP/RTP/HLS/RTSP and more IP protocol options the OMP500 can fit into any architecture to enable OTT delivery in your system. With three available models to choose from the OMP500 can enable OTT services on any budget. Ranging from a budget friendly entry level system for one OTT service to the highest performance model capable of providing up to forty OTT services.

FEATURES
  • Supports previewing input video and detailed service analysis
  • Interlace and deinterlace options, advanded de-jitter and denoise for best video/audio quality
  • Logo/Graphic insertion, text overlay (licensed feature) and auxiliary data processing such as
  • Closed Caption, Teletext and DVB subtitles
  • Supports input channel, port level and system level redundancy
  • Flexible and future proof, support new features by software/license upgrade
  • Provides management with easy to use web interface and SNMP protocol

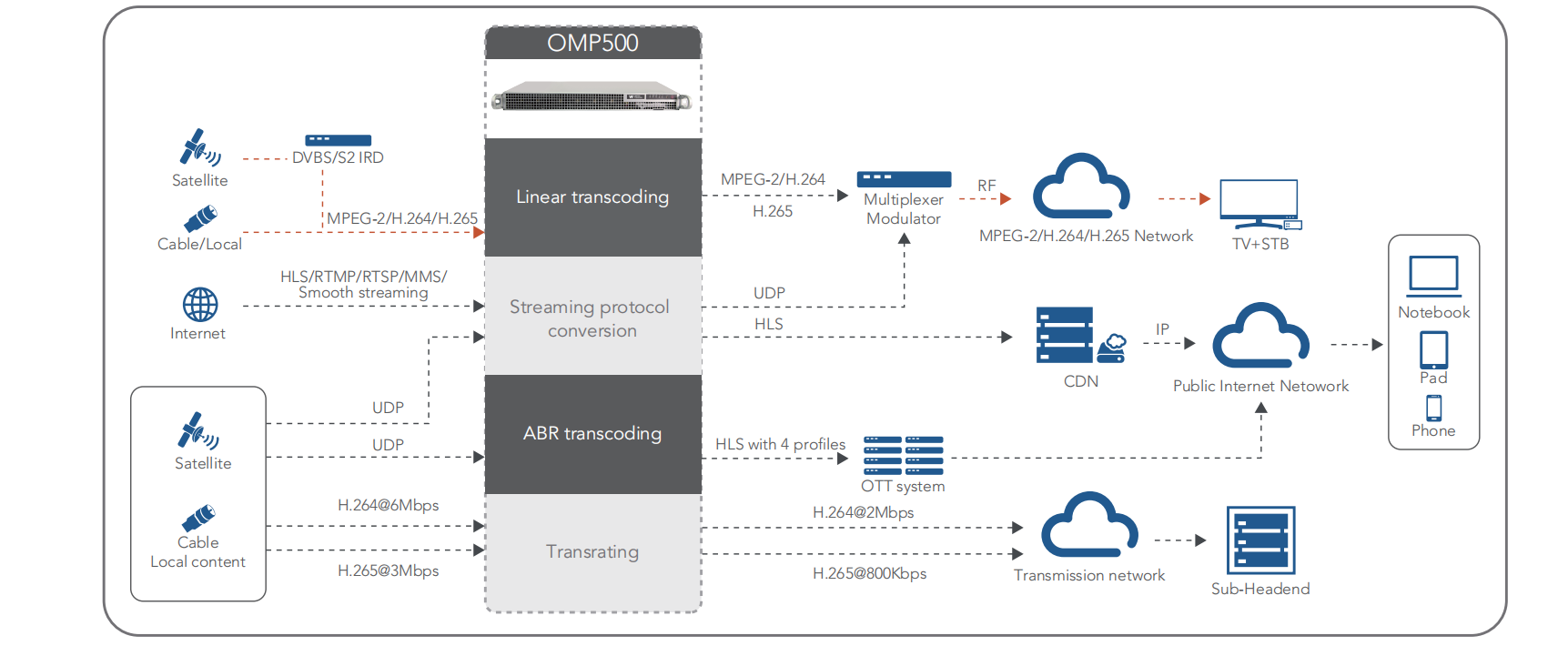

APPLICATION
  • Convert MPEG-2/H.264/H.265 input into MPEG-2/H.264/H.265* output for compatibility with different networks
  • Scale video resolutions and change frame-rates to accommodate HD or SD system requirements
  • Receive OTT sources over the public internet as Unicast, HLS, or RTMP and convert to traditional multicast UDP/RTP IPTV signal type
  • Transcode and package up to four adaptive bit-rate (H.264) profiles for traditional OTT uplink into Origin Server or Content Delivery Network (CDN)
  • Reduce bandwidth by changing codecs and resolution (commonly known as "rate-shaping”or "trans-rating")

 Multi-channel Linear Transcoder










Resources Download
  Introduction Slides









Softare Version

The latest SW version is V6.5.3.0-10780.



Update



1. Enhance the license feature..

......



Notes:

  1. Please contact your distributor or Wellav sales to get the softwares and release notes.
  2. When you are on the upgrade progress, please make sure the unit won't lose the power supply and have stable network connection. Otherwise, the unit will have the risk of failing to boot up.
  3. If you have any question about the software upgrade, please confirm with Wellav Support team first (support@wellav.com).
  4. If your unit is old or using the old software, we don't suggest you to do the upgrade by yourself. There will have a risk of failing to boot up.please confirm with Wellav Support team first(support@wellav.com)





Model Number Software Version Release Note
IPTV/OTT Transcoding Platform
OMP500
 V6.5.3.0-10780  V1.5.pdf
