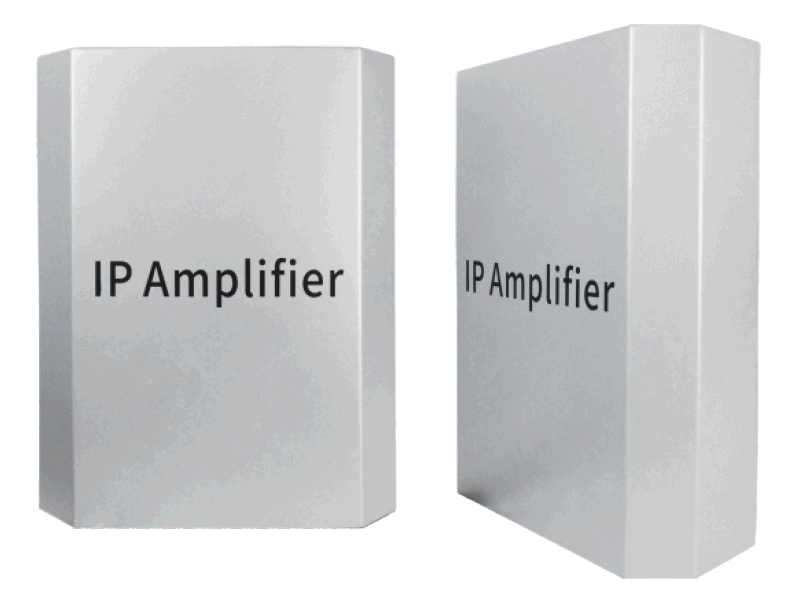

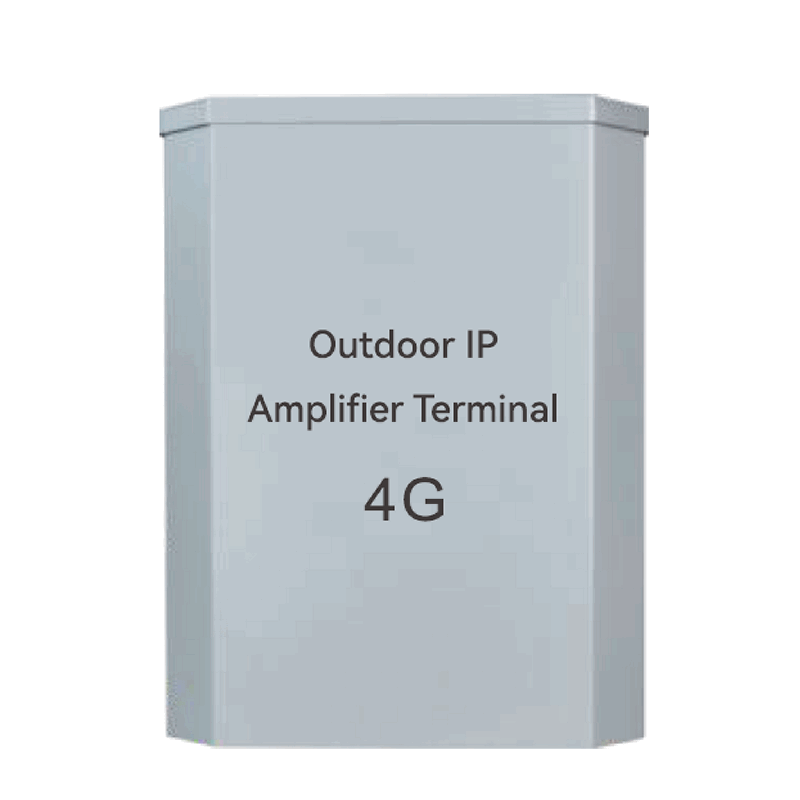

SPK-IPA-50-4G / SPK-IPA-100-4G / SPK-IPA-100E-4G
The IP amplifier terminal integrates IP/4G network audio decoder and digital amplifier to effortlessly drive constant impedance speakers, enabling clear, stable sound reinforcement for outdoor public address needs.
FEATURES
|
Model |
SPK-IPA-50-4G |
SPK-IPA-100-4G |
SPK-IPA-100E-4G |
|
Power Consumption |
50 W |
100 W |
|
|
Ethernet Interface |
1× RJ45 (100Mbps) |
1× RJ45 (100Mbps) (from wire harness) |
|
|
4G Network |
1× external 2/3/4G SIM slot, 1× SMA interface with antenna; LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41 |
||
|
Network Protocol |
*SIP, HTTP/HTTPS, TCP/IP, UDP, ARP, IGMP, RTSP |
||
|
Direct Interface (DI) |
/ |
1× phoenix connector, 1× RS485, 1× DI (all from wire harness) |
|
|
RJ485 Interface |
/ |
||
|
Analog Audio Interface |
/ |
1× RCA port, input/output (optional) |
|
|
USB Interface |
1× USB 2.0 (Type-A) |
||
|
Volume Adjustment |
1× volume control knob for local control; Audio Control System or App for remote control |
||
|
Upgrade |
Local IP/USB file upgrade; OTA via Audio Control System |
||
|
VAC Input Voltage |
90–240 V AC, 50/60 Hz |
||
|
VDC Input Voltage |
1× DC 24V Jack, Ø5.5 mm with Ø2.2 mm female pin |
1× DC 24V Jack, Ø5.5 mm with Ø2.2 mm female pin (from wire harness) |
|
|
Lightning Protection Rating |
≥6 kV |
||
|
Ingress Protection |
IP66 |
||
|
Operating Temperature |
-20–50℃ (-4–122℉) |
||
|
Storage Temperature |
-40–60℃ (-40–140℉) |
||
|
Operating Humidity |
＜90% RH (non-condensing) |
||
|
Color |
Gray, metal shell |
||
|
Dimension (W×H×D) |
210×272×86 mm |
||
|
Weight |
2.07 kg |
||
*SIP will be supported in June 2025
*The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
