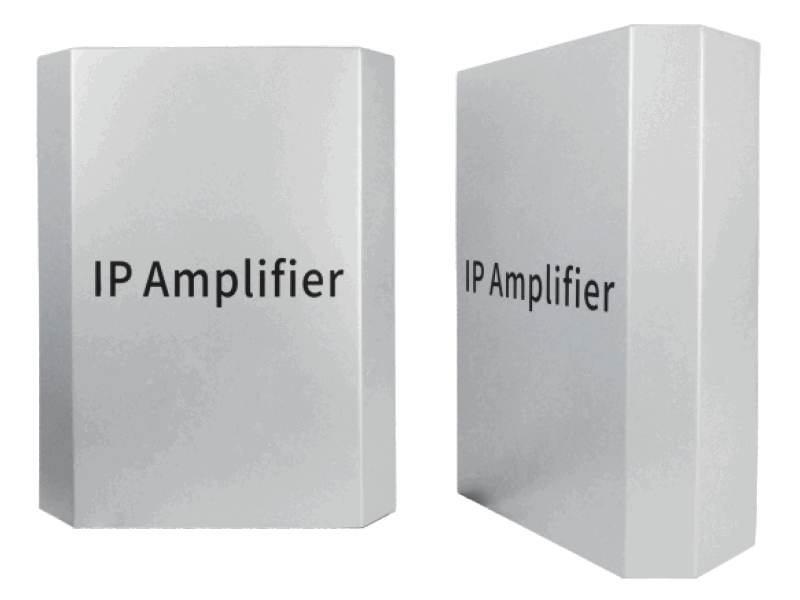

SPK-IPA-100 / SPK-IPA-100E
The IP amplifier terminal integrates IP network audio decoder and digital amplifier to effortlessly drive constant impedance speakers, enabling clear, stable sound reinforcement for outdoor public address needs.
FEATURES
Model |
SPK-IPA-100 |
SPK-IPA-100E |
Power Consumption |
100 W |
|
Ethernet Interface |
1× RJ45 (100Mbps) |
1× RJ45 (100Mbps) (from wire harness) |
Network Protocol |
*SIP, HTTP/HTTPS, TCP/IP, UDP, ARP, IGMP, RTSP |
|
Direct Interface (DI) |
/ |
1× phoenix connector, 1× RS485, 1× DI (all from wire harness) |
RJ485 Interface |
/ |
|
Analog Audio Interface |
/ |
1× RCA port, input/output (optional) |
USB Interface |
1× USB 2.0 (Type-A) |
|
Volume Adjustment |
1× volume control knob for local control; Audio Control System or App for remote control |
|
Upgrade |
Local IP/USB file upgrade; OTA via Audio Control System |
|
VAC Input Voltage |
90–240 V AC, 50/60 Hz |
|
VDC Input Voltage |
1× DC 24V Jack Ø5.5 mm with Ø2.2 mm female pin |
1× DC 24V Jack, Ø5.5 mm with Ø2.2 mm female pin (from wire harness) |
Lightning Protection Rating |
≥6 kV |
|
Ingress Protection |
IP66 |
|
Operating Temperature |
-20–50℃ (-4–122℉) |
|
Storage Temperature |
-40–60℃ (-40–140℉) |
|
Operating Humidity |
<90% RH |
|
Color |
Gray, metal shell |
|

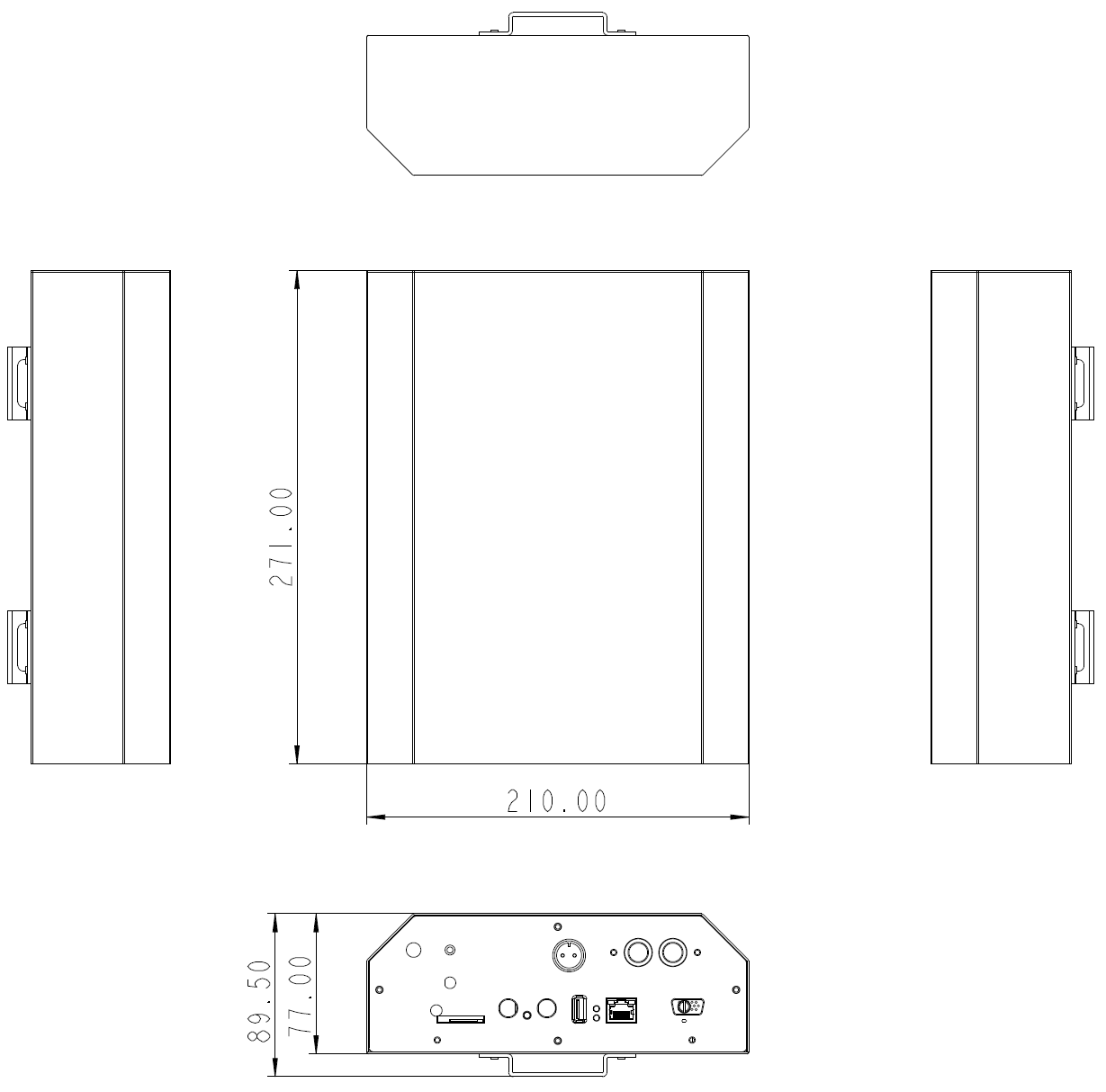

Dimension (W×H×D) |
210×272×86 mm |
|
Weight |
2.07 kg |
*SIP will be supported in June 2025
