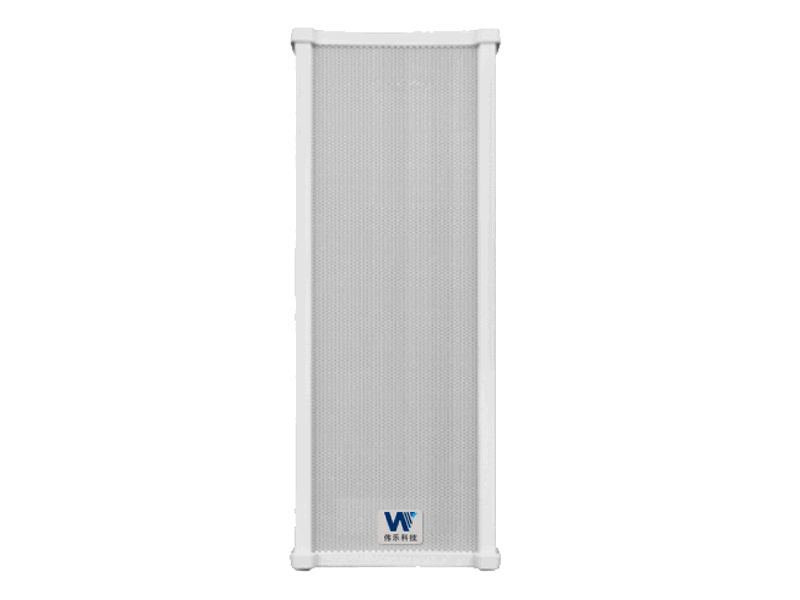

IP Column Speakers (4G-Enabled)

Model

SPK-IPC-25-4G

SPK-IPC-25E-4G

SPK-IPC-60E-4G

Power Consumption

25 W

60 W

Ethernet Interface

1× RJ45 (100Mbps)

1× RJ45 (100Mbps) (from wire harness)

4G Network

1× external 2/3/4G SIM slot, 1× SMA interface with antenna;

LTE-FDD: B1/B3/B5/B8;

LTE-TDD: B34/B38/B39/B40/B41

Network Protocol

*SIP, HTTP/HTTPS, TCP/IP, UDP, ARP, IGMP, RTSP

Direct Interface (DI)

/

1× phoenix connector, 1× RS485, 1× DI

(all from wire harness)

RJ485 Interface

/

Analog Audio Interface

/

1× RCA port,  input/output (optional)

USB Interface

1× USB 2.0 (Type-A)

Volume Adjustment

1× volume control knob for local control;

Audio Management Control System or App for remote control

Upgrade

Local IP/USB file upgrade;

OTA via Audio Management Control System

VAC Input Voltage

90–240 V AC, 50/60 Hz

VDC Input Voltage

1× DC 19V  Jack,

Ø5.5 mm with Ø2.1 mm female pin

1× DC 19V Jack, Ø5.5 mm with Ø2.1 mm female pin

(all from wire harness)

Lightning Protection Rating

≥6 kV

Ingress Protection

IP55

Operating Temperature

-20–50℃ (-4–122℉)

Storage Temperature

-40–60℃ (-40–140℉)

Operating Humidity

＜90% RH (non-condensing)

Color

White, aluminum alloy shell

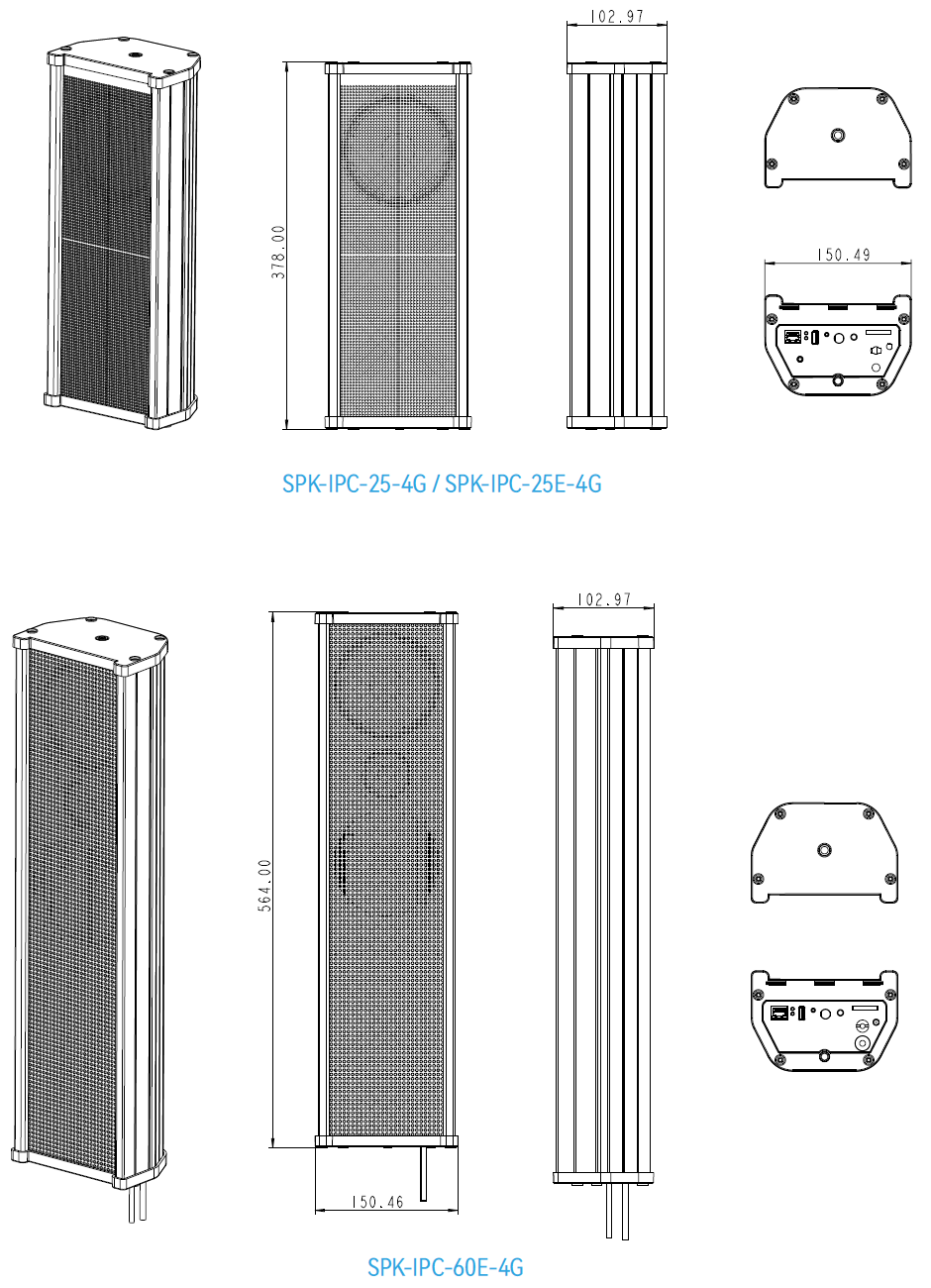

Dimension (W×H×D)

150×378×102 mm

150×564×102 mm

Weight

1.82 kg

3.65 kg
