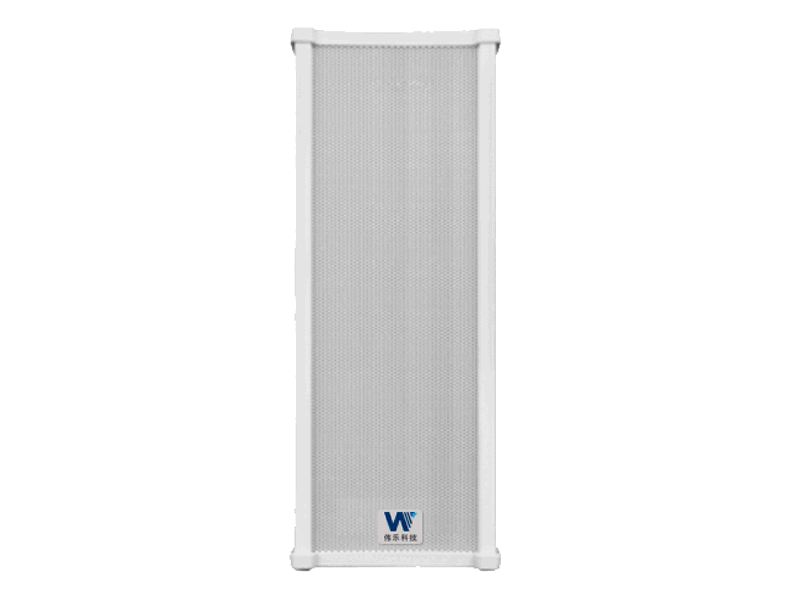

SPK-IPC-25 / SPK-IPC-25E
The outdoor IP column speaker integrates network audio decoding, digital amplification, and high-quality sound reinforcement, enabling effortless remote audio management and reliable delivery of clear, stable sound.
FEATURES
|
Model |
SPK-IPC-25 |
SPK-IPC-25E |
|
Power Consumption |
25 W |
|
|
Ethernet Interface |
1× RJ45 (100Mbps) |
1× RJ45 (100Mbps) (from wire harness) |
|
Network Protocol |
*SIP, HTTP/HTTPS, TCP/IP, UDP, ARP, IGMP, RTSP |
|
|
Digital Input (DI) |
/ |
1× phoenix connector, 1× RS485, 1× DI (all from wire harness) |
|
RJ485 Interface |
/ |
|
|
Analog Audio Interface |
/ |
1× RCA port, input/output (optional) |
|
USB Interface |
1× USB2.0 (Type-A) |
|
|
Volume Adjustment |
1× volume control knob for local control; Audio Management Control System or App for remote control |
|
|
Upgrade |
Local IP/USB file upgrade; OTA via Audio Management Control System |
|
|
VAC Input Voltage |
90–240 V AC, 50/60 Hz |
|
|
VDC Input Voltage |
1× DC 19V Jack, Ø5.5 mm with Ø2.1 mm female pin |
1× DC 19V Jack, Ø5.5 mm with Ø2.1 mm female pin (all from wire harness) |
|
Lightning Protection Rating |
≥6 kV |
|
|
Ingress Protection |
IP55 |
|
|
Operating Temperature |
-20–50℃ (-4–122℉) |
|
|
Storage Temperature |
-40–60℃ (-40–140℉) |
|
|
Operating Humidity |
＜90% RH (non-condensing) |
|
|
Color |
White, aluminum alloy shell |
|
|

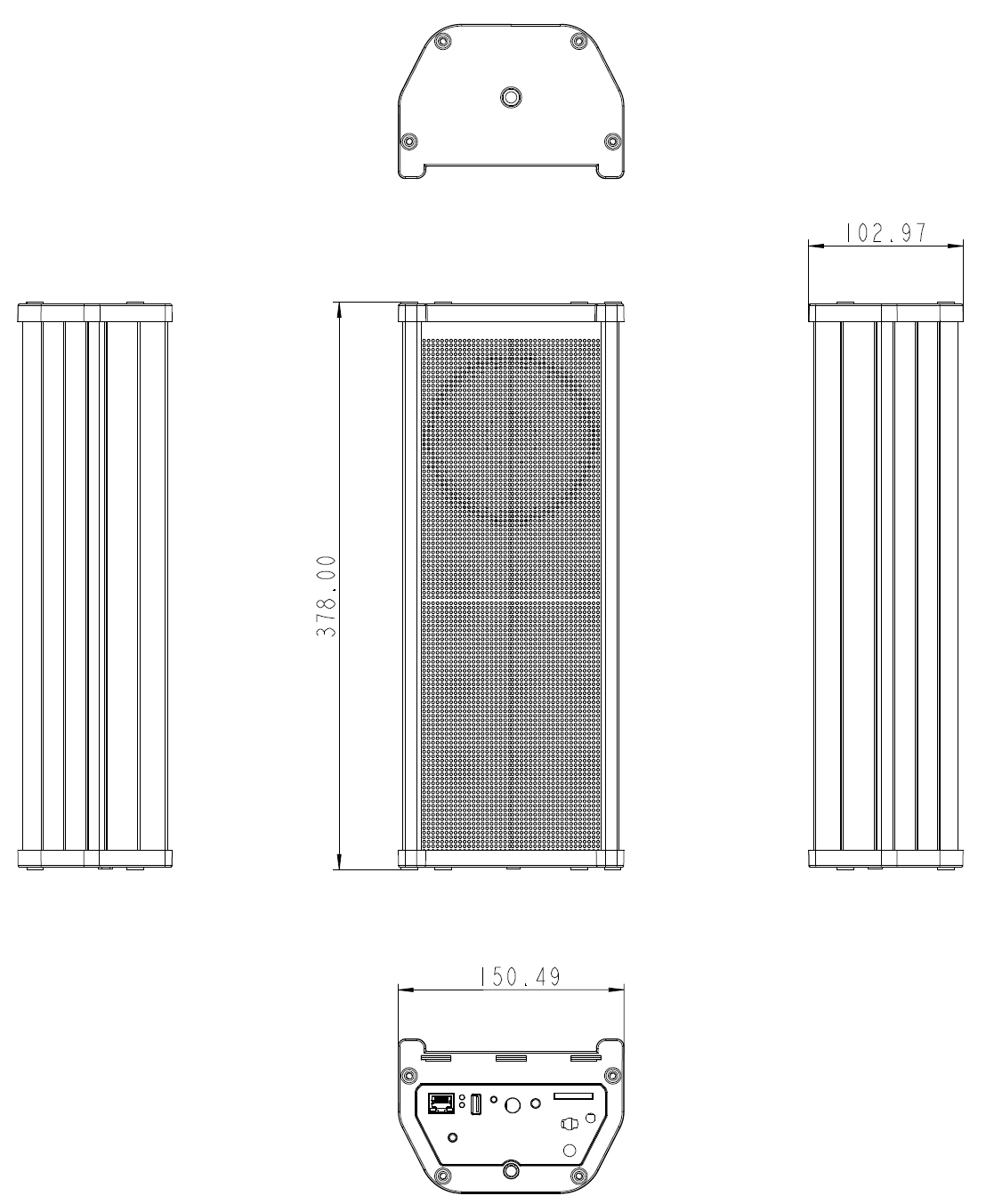

Dimension (W×H×D) |
150×378×102 mm |
|
|
Weight |
1.82 kg |
|
*SIP will be supported in June 2025
*The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
