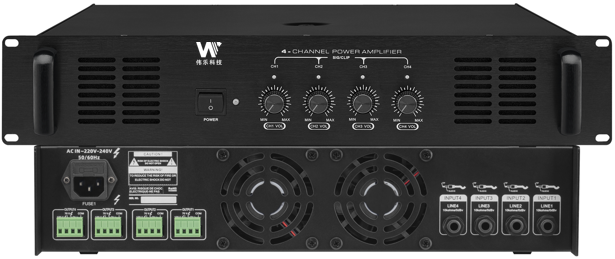

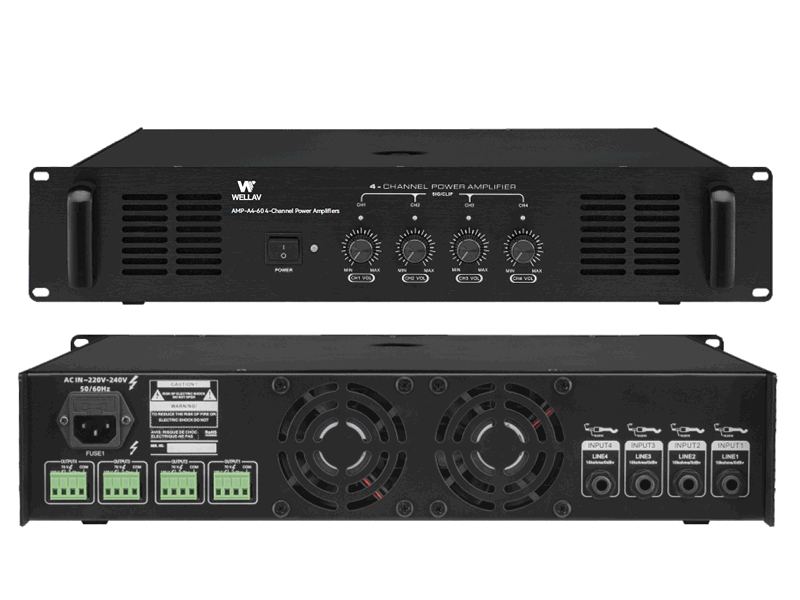

AMP-A4-60/120/250/350
To amplify four independent audio signals via voltage and power amplification with independent volume adjustment, boosting signals to drive speakers and enabling flexible audio system setup. Ideal for stable sound reinforcement scenarios.
FEATURES
|
Model |
AMP-A4-60 |
AMP-A4-120 |
AMP-A4-250 |
AMP-A4-350 |
|
Rated Power |
4× 60 W |
4× 120 W |
4× 250 W |
4× 350 W |
|
Rated Voltage |
70 V/100 V or 4–16 Ω output |
|||
|
Max. Power Consumption |
509 W |
945 W |
1890 W |
2618 W |
|
Audio Input |
4× LINE input, Ø6.35 mm connector, 10 kΩ /0 dBv |
|||
|
Audio Output |
4 outputs, binding post |
|||
|
Input Sensitivity |
750 mV (±15%) / 1 kHz / 47 kΩ |
|||
|
Signal-to-noise Ratio (SNR) |
≥90 dB |
|||
|
Frequency Response |
100 Hz–20 kHz (±3 dB) |
|||
|
Distortion |
＜0.2% (LINE in＜2%）/ 1 kHz /10V rated resistance output |
|||
|
Power Requirement |
220–240 V AC/ 50–60 Hz |
|||
|
Dimension (W×H×D) |
484×88×460 mm |
|||
|
Weight |
19.5 kg |
22.5 kg |
25.5 kg |
28.5 kg |
