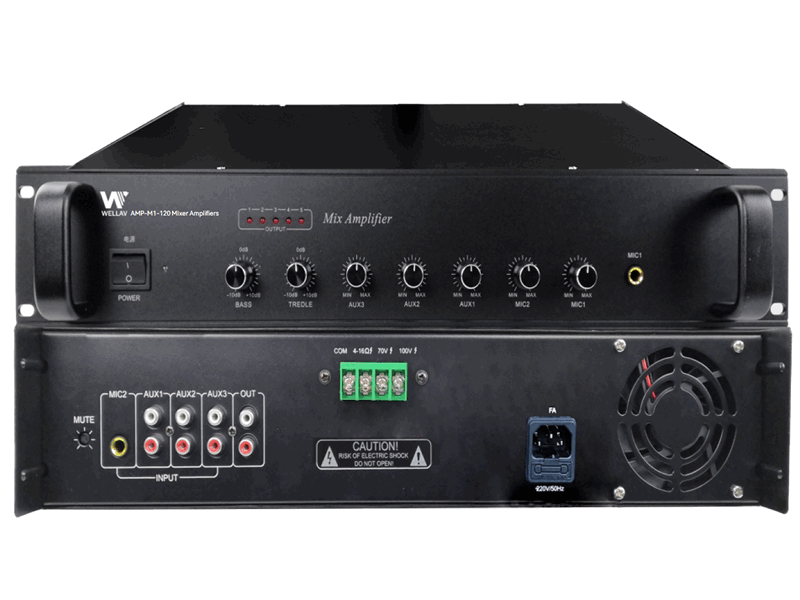

6-Zone Mixer Amplifiers

Model

AMP-M1-120

AMP-M1-250

AMP-M1-350

Power Consumption

120 W

250 W

350 W

Rated Voltage

70 V/100 V or 4–16 Ω output

MIC Input

2× Φ 6.35mm MIC port

AUX Input

3× RCA (R+ / L+)

AUX Output

1× RCA (R+ / L+)

Volume Control

7× control knob on front panel: Base, Treble, AUX1/2/3, MIC1/2

Input Sensitivity

MIC: 3mV unbalanced; LINE: 300mV unbalanced

Signal-to-noise Ratio (SNR)

MIC＞66dB, LINE＞70dB

Frequency Response

60 Hz–16 kHz

Distortion (1 kHz)

LINE＜0.1%; MIC＜0.3

Tone Adjustment

Bass: ±10 dB (100 kHz), Treble: ±10 dB (100 kHz)

Protection

AC fuse, DC voltage, overload, short-circuit

VAC Input Voltage

220 V AC, 50/60 Hz

Operating Temperature

-20–50℃ (-4–122℉)

Storage Temperature

-40–60℃ (-40–140℉)

Operating Humidity

＜90% RH (non-condensing)

Color

Black, aluminum alloy brushed panel

Dimension (W×H×D)

2RU, 485×88×465 mm

Weight

11.1 kg

13.9 kg

14.5 kg
