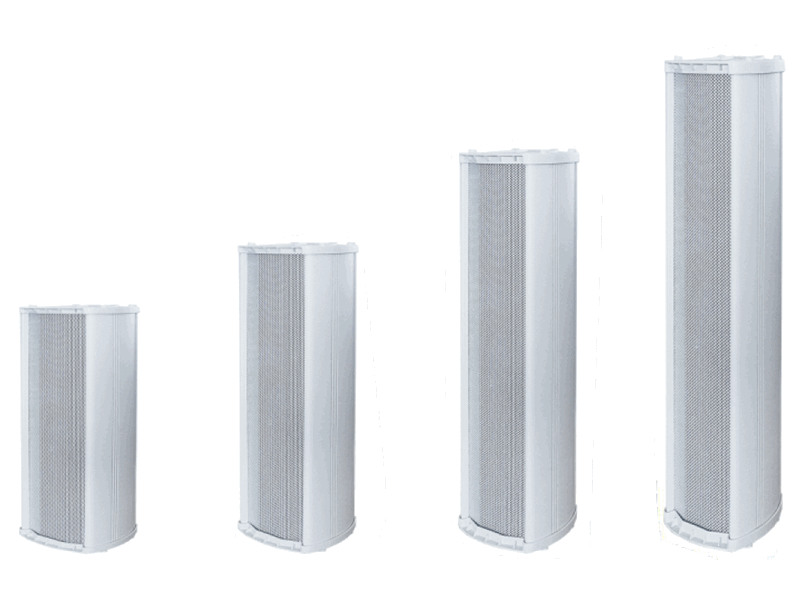

5.5-inch Waterproof Column Speakers

5.5-inch Waterproof Column Speakers

5.5-inch Waterproof Column Speakers

SPK-AC5-20H/40H/60H/80H



The passive column speaker works perfectly in various settings, especially those requiring waterproofing.



Inquire Now

FEATURES

  • Designed for all-weather environments with waterproof components, ensuring durable, clear audio indoors and outdoors via high-sensitivity speaker drivers.
  • Enables fast, hassle-free installation with included brackets.
  • Works seamlessly with standard systems via 70V/100V compatibility and multiple terminals for versatile applications.
  • Offers 20W/40W/60W/80W power options to match small-area needs or large-space coverage requirements.
  • Provides flexible sound coverage with one 3-inch and different numbers of 5-inch speaker drivers, ensuring precise audio for any scene.

Model

SPK-AC5-20H

SPK-AC5-40H

SPK-AC5-60H

SPK-AC5-80H

Rated Power

20 W

40 W

60 W

80 W

Rated Voltage

70 V / 100  V

Speaker Driver

1× 5'', 1× 3''

2× 5'', 1× 3''

3× 5'', 1× 3''

4× 5'', 1× 3''

Sensitivity (1m, 1W)

87(±2) dB

89(±2) dB

91(±2) dB

93(±2) dB

Sound Pressure Level (SPL) (1m)

99(±2) dB

102(±2) dB

103(±2) dB

105(±2) dB

Frequency Response

80 Hz–20 kHz

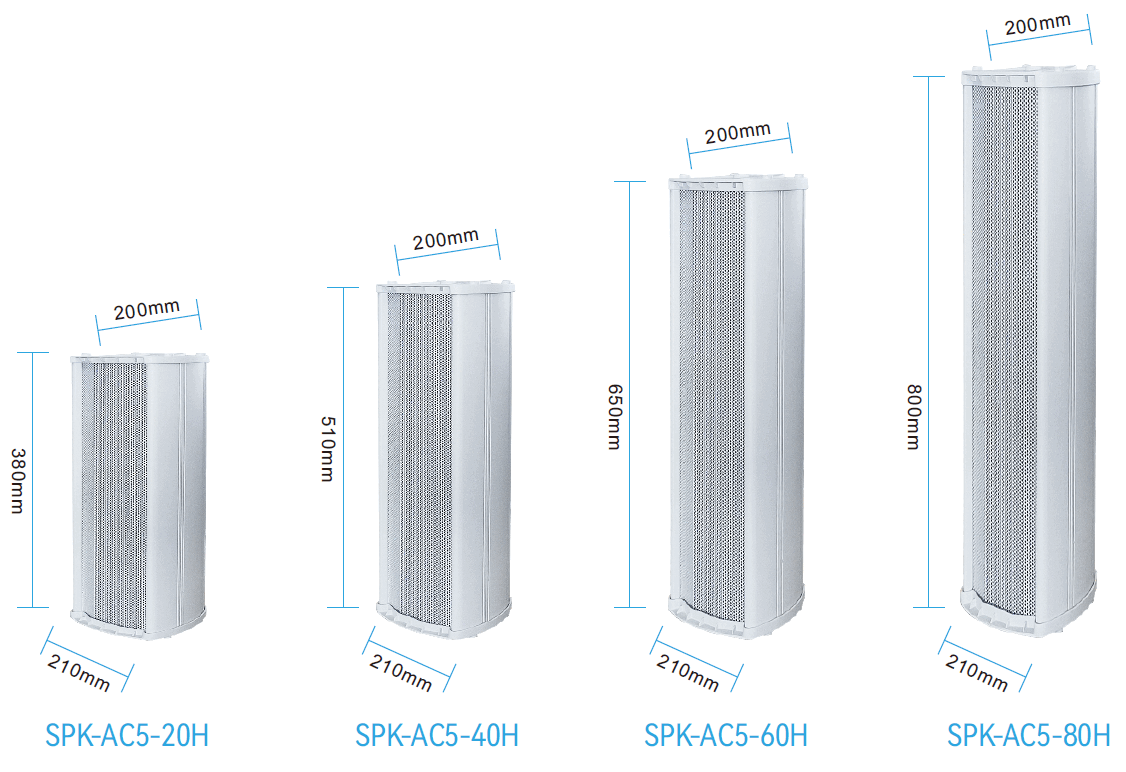

Dimension (W×H×D)

210×380×200 mm

210×510×200 mm

210×650×200 mm

210×800×200 mm

Weight

2.5 kg

3.5 kg

4.5 kg

5.5 kg
Hot Tags : loudspeaker outdoor use all-weather design
