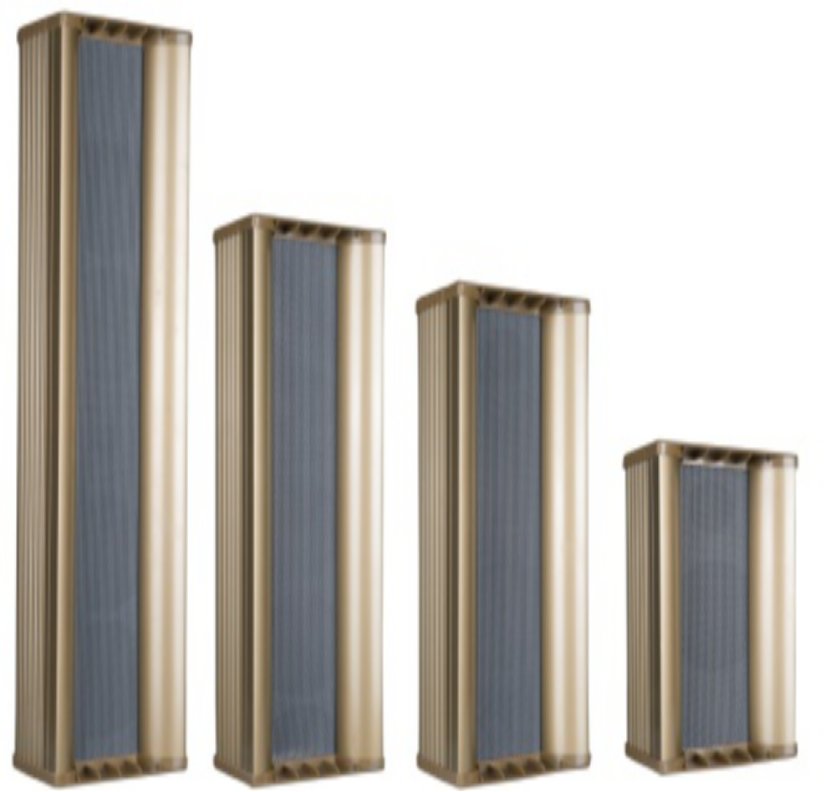

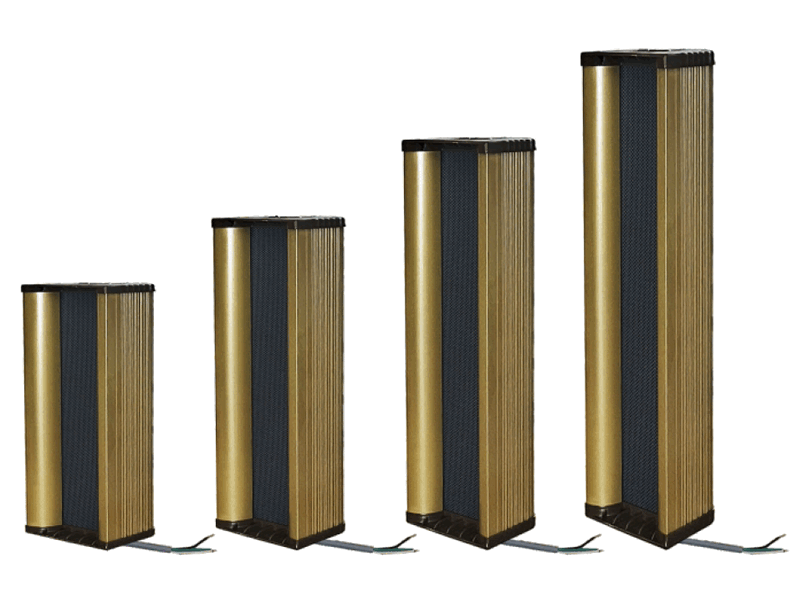

SPK-AC4-10H/20H/30H/40H
The passive column speaker works perfectly in various settings, especially those requiring waterproofing.
FEATURES
|
Model |
SPK-AC4-10H |
SPK-AC4-20H |
SPK-AC4-30H |
SPK-AC4-40H |
|
Rated Power |
10 W |
20 W |
30 W |
40 W |
|
Rated Voltage |
70 V / 100 V |
|||
|
Speaker Driver |
1× 4'', 1× 2.5'' |
2× 4'', 1× 2.5'' |
4× 3'', 1× 2.5'' |
4× 4'', 1× 2.5'' |
|
Sensitivity (1m, 1W) |
87(±2) dB |
89(±2) dB |
91(±2) dB |
93(±2) dB |
|
Sound Pressure Level (SPL) (1m) |
99(±2) dB |
102(±2) dB |
103(±2) dB |
105(±2) dB |
|
Frequency Response |
140 Hz–14 kHz |
|||
|

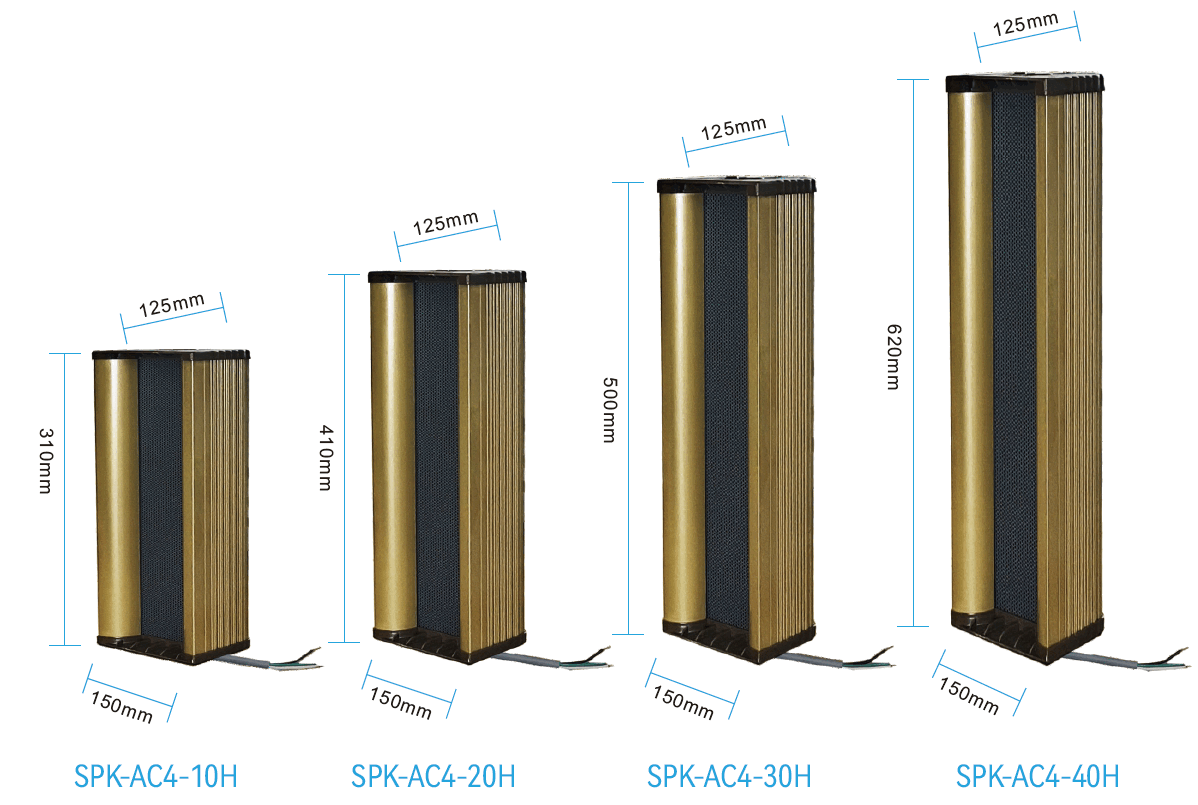

Dimension (W×H×D) |
150×310×125 mm |
150×410×125 mm |
150×500×125 mm |
150×620×125 mm |
|
Weight |
2.5 kg |
3.5 kg |
4.5 kg |
5.5 kg |
