MIC-SE-I-04 / MIC-SE-O-04
Designed to amplify audio signals received from wireless microphones, available in two models: indoor (MIC-SE-I-04) and IP66-rated waterproof outdoor (MIC-SE-O-04).
Designed to amplify audio signals received from wireless microphones, available in two models: indoor (MIC-SE-I-04) and IP66-rated waterproof outdoor (MIC-SE-O-04).
Available in two models: indoor (MIC-SE-I-04) and IP66-rated waterproof outdoor (MIC-SE-O-04).
|
Model |
MIC-SE-O-04 |
MIC-SE-I-04 |
|
Antenna |
||
|
Antenna Type |

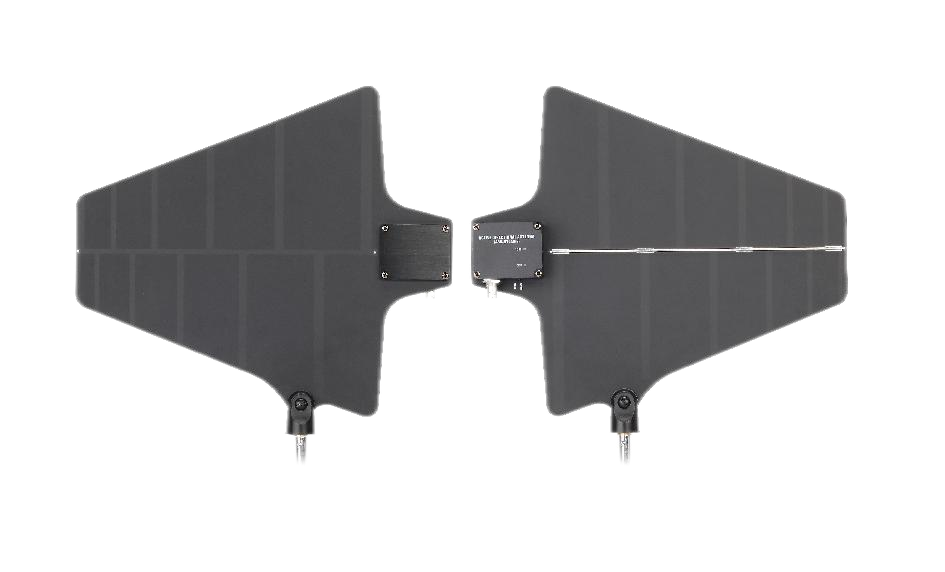

Black, LPDA directional antenna (outdoor) |

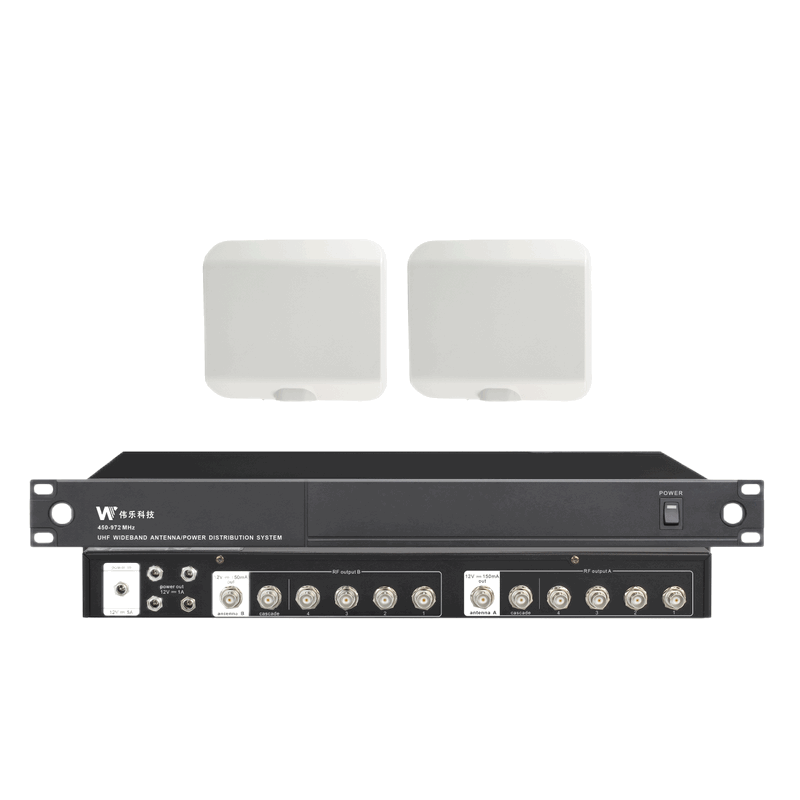

White, LPDA directional antenna (indoor) |
|
Frequency Range |
500 MHz –1 GHz |
|
|
Gain |
6–10 dB |
|
|
Impedance |
50 Ω |
|
|
Voltage Standing Wave Ratio (VSWR) |
≤1.7:1 |
|
|
Directivity |
Oval 180° |
|
|
Polarization |
Vertical |
|
|
Number of Director Segments |
11 |
|
|
Connection Terminal |
Fixed right-angle BNC female connector |
|
|
Host |
||
|
Antenna Splitter |
1 in 2 out |
|
|
Frequency Range |
500 MHz –1 GHz |
|
|
Gain |
6–10 dB |
|
|
Power Supply |
12 V DC / 2–3 A |
|
|
Dimension (W×H×D) |
484×44×210 mm |
|
|
Weight |
2.1 kg |
|
