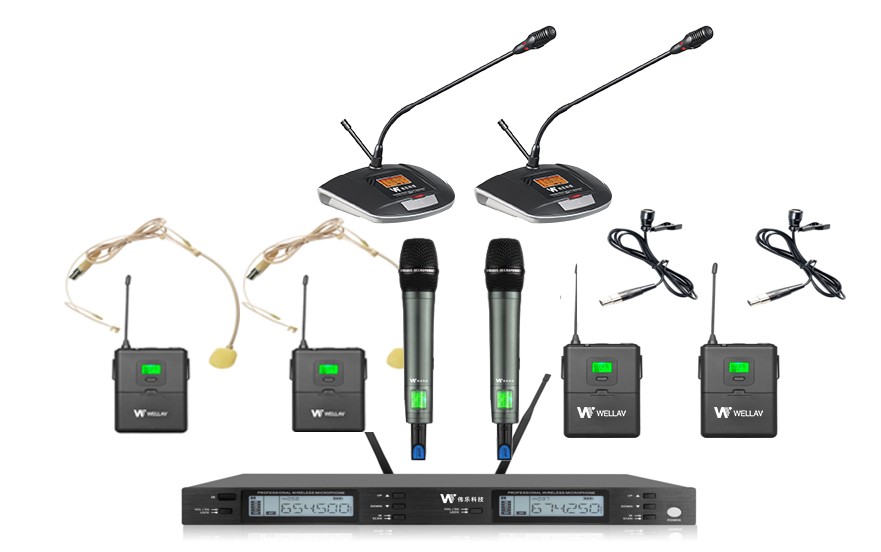

True Diversity Wireless Microphone Systems

Model

MIC-W-H-02E

MIC-W-HS-02E

MIC-W-L-02E

MIC-W-MG-02E

Transmitter (Microphone)

Mic Type

2× handheld Mic

2× headworn Mic

2× lavalier Mic

2× desktop Mic

Frequency  Range

UHF 530–580 MHz, 615–665 MHz

Modulation Mode

FM

Number of Pre-set Channels

2×400

Frequency Stability

＜30 ppm

Dynamic Range

≥100 dB(A)

Max. Frequency Deviation

±45 kHz

Max. Sound Pressure Level (SPL)

-130 dB

Power Requirement

5× C batteries (for continuous operation ≥6 hours)

Receiver

Frequency  Range

UHF 530–580 MHz, 615–665 MHz

Number of Pre-set Channels

2× 400

Audio Output

2× XLR, 1× 6.35 mm jack

Frequency Response

50 Hz–15 kHz (±3 dB)

Input Sensitivity

5 dBuV

Distortion

＜0.3% @1 kHz

Signal-to-noise Ratio (SNR)

＞105 dB(A)

Communication Distance

100 m (line-of-sight)

Output Level

XLR: 250 mV / 600 Ω, Unbalanced output (1/4" output jack): 400 mV / 3 kΩ

Power Requirement

12 V DC / 1 A

Dimension (W×H×D)

485×45×185 mm

Weight

1.6 kg
