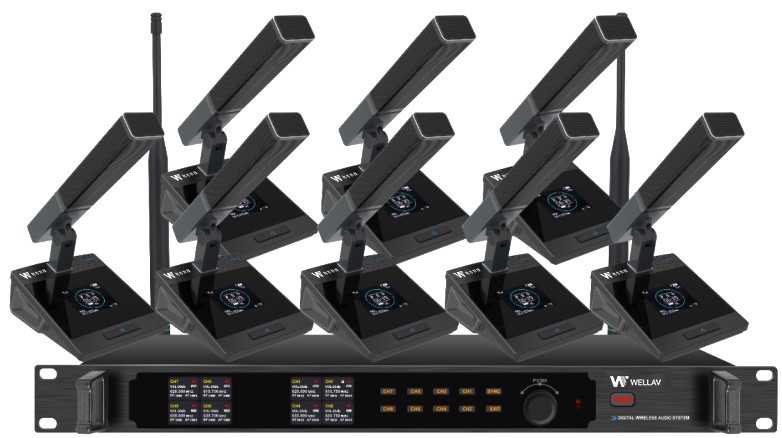

Wireless Conference Square-pole Microphone Systems

Model

MIC-W-MS-02

MIC-W-MS-04

MIC-W-MS-08

Transmitter (Microphone)

Mic Type

2× desktop Mic

4× desktop Mic

8× desktop Mic

Frequency  Range

UHF 470–960 MHz

Modulation Mode

FSK

Number of Pre-set Channels

2× 200

4× 200

8× 200

Transmit Power

13.5 dBm

Carrier Error

0.005%

Max. Frequency Deviation

±65 kHz

Harmonic Radiation

-32 dBm

Max. Level

250 mV

Output Impedance

2.2 kΩ

Power Requirement

5× AA batteries (for continuous operation ≥10 hours)

Receiver

Frequency  Range

UHF 470–960 MHz

Number of Pre-set Channels

2× 200

4× 200

8× 200

Frequency Stability

0.005%

Audio Output

2× XLR, 1× 6.35 mm jack

4× XLR, 1× 6.35 mm jack

8× XLR, 1× 6.35 mm jack

Frequency Response

50 Hz–18 kHz (±3 dB)

Distortion

≤0.8% @1 kHz

Signal-to-noise Ratio (SNR)

≥105 dB(A)

Communication Distance

80 m (line-of-sight)

Power Requirement

12 V DC / 1 A

Dimension (W×H×D)

485×45×185 mm

480×90×200 mm

Weight

1.6 kg

1.8 kg

2.8 kg
