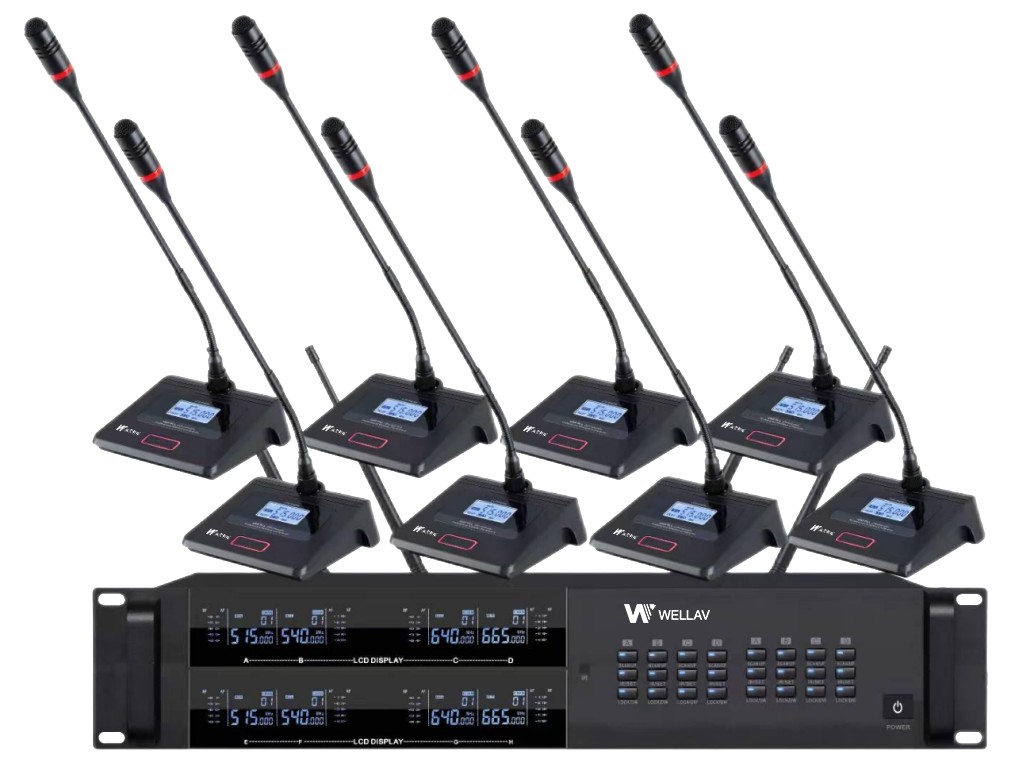

MIC-W-MG-02 / MIC-W-MG-04 / MIC-W-MG-08
UHF (Ultra High Frequency) wireless conference gooseneck microphone system, designed for conference systems and sound reinforcement scenarios. Available in 2/4/8-channel configurations.
FEATURES
|
Model |
MIC-W-MG-02 |
MIC-W-MG-04 |
MIC-W-MG-08 |
|
Transmitter (Microphone) |
|
||
|
Mic Type |
2× desktop Mic |
4× desktop Mic |
8× desktop Mic |
|
Frequency Range |
UHF 640–690 MHz |
||
|
Modulation Mode |
FM |
||
|
Number of Pre-set Channels |
2× 200 |
4× 200 |
8× 200 |
|
Transmit Power |
15 mW |
||
|
Bandwidth |
30 MHz |
||
|
Max. Frequency Deviation |
±45 kHz |
||
|
Dynamic Range |
≥106 dB |
||
|
Harmonic Radiation |
＜65 dBm |
||
|
Power Requirement |
3× AA batteries (for continuous operation ≥6 hours) |
||
|
Receiver |
|
||
|
Frequency Range |
UHF 640–690 MHz |
||
|
Number of Pre-set Channels |
2× 200 |
4× 200 |
8× 200 |
|
Frequency Stability |
±0.002% |
||
|
Audio Output |
2× XLR, 1× 6.35 mm jack |
4× XLR, 1× 6.35 mm jack |
8× XLR, 1× 6.35 mm jack |
|
Input Sensitivity |
-95–-60 dBm |
||
|
Frequency Response |
50 Hz–15 kHz |
||
|
Gain |
≤20 dB |
||
|
Distortion |
≤0.8% |
||
|
Signal-to-noise Ratio (SNR) |
>85 dB |
||
|
Communication Distance |
80 m (line-of-sight) |
||
|
Power Requirement |
12 V DC / 1 A |
||
|
Dimension (W×H×D) |
485×45×185 mm |
480×90×200 mm |
|
|
Weight |
1.6 kg |
1.8 kg |
2.8 kg |
Optional accessories: antenna signal boosters MIC-SE-O-04 & MIC-SE-I-04 are available for enhanced signal reception.
