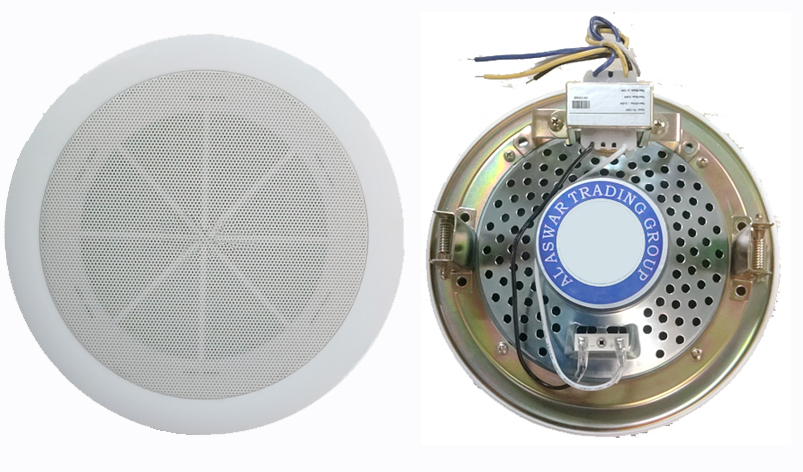

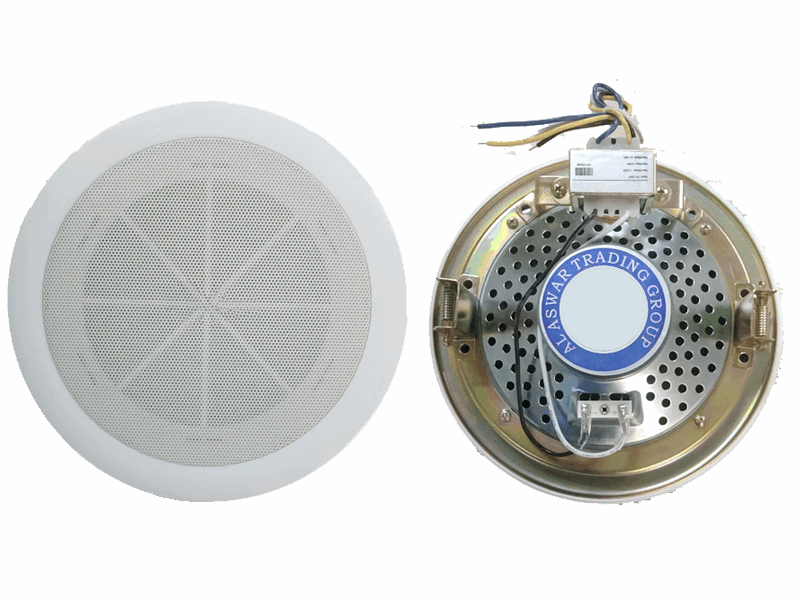

SPK-ACE5-05 / SPK-ACE5-06 / SPK-ACE6-08FA / SPK-ACE6-10 / SPK-ACE6-10H / SPK-ACE6-30HF



The ceiling speakers offer easy installation, efficient cabling, and superior sound quality for indoor spaces.

FEATURES

  • Offers flexible power from 2 to 30W via adjustable settings, adapting seamlessly to diverse applications.
  • Ensures long-lasting durability with impact-resistant, fade-proof plastic casing.
  • Delivers high-fidelity, vibrant sound through floating-edge damping, minimizing resonance for clear mid/high frequencies.
  • Fits easily into most ceilings with a low-profile and shallow can design.
  • Simplifies wiring drastically via daisy-chain connectivity, reducing cable use and installation time for multi-speaker setups.





Model

SPK-ACE5-05

SPK-ACE5-06

SPK-ACE6-08FA

SPK-ACE6-10

SPK-ACE6-10H

SPK-ACE6-30HF

Rated Power

2–6 W

3–6 W

3–8 W

8–10 W

10 W

10–30 W

Output Voltage

70/100 V

Speaker Driver

1× 5''

1× 4.5''

1× 6.5''

1× 6.5''

1× 6.5'', 1× 0.75''

2× 8'', 1× 1''

Sensitivity (1m, 1W)

91(±2) dB

91(±2) dB

85 dB

93 dB

92(±2) dB

90(±2) dB

Sound Pressure Level (SPL) (1m)

90(±2) dB

92(±2) dB

105–111 dB

94(±2) dB

103 dB

103(±2) dB

Frequency Response

110 Hz18 kHz

100 Hz18 kHz

35 Hz16 kHz

98 Hz20 kHz

98 Hz–18 kHz

88 Hz20 kHz

Rear Shell & Rear Cover

Rear shell & cover included

None

Rear shell & cover included

None

Rear shell included

Rear shell & cover included

Material

Plastic

Plastic

Metal

Plastic

Plastic

Plastic

Overall Dimension (Ø x Depth)

Ø180×65 mm

Ø180×75 mm

Ø205×90 mm

Ø210×82 mm

Ø191×80 mm

Ø240×140 mm

Required Cutout Size

Ø145 mm

Ø154164 mm

Ø165 mm

Ø178190 mm

Ø165168 mm

Ø195 mm

Weight

0.5 kg

0.7 kg

1.02 kg

0.85 kg

0.85 kg

1.6 kg







Please refer to the page: Download - PAVA
