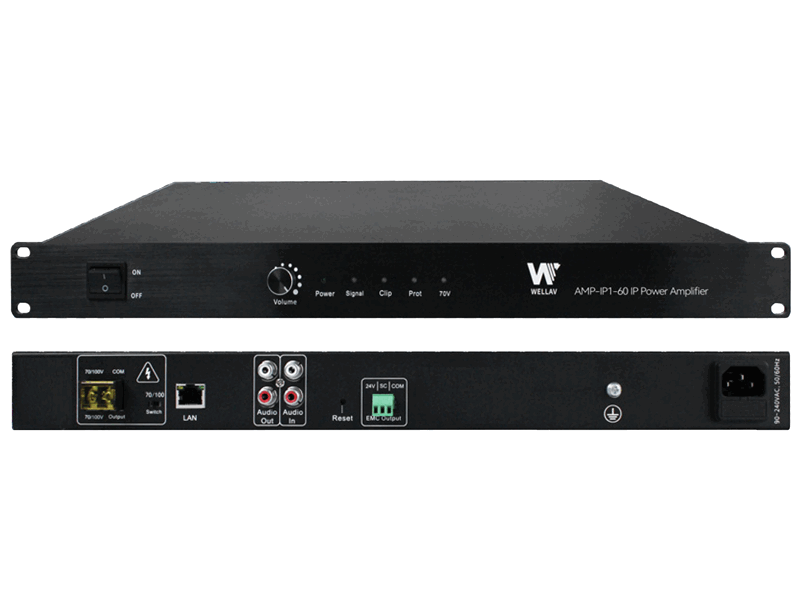

AMP-IP1-60 / AMP-IP1-120
The IP power amplifier plays as a key intermediary that directly communicates with the broadcast host over IP to receive tasks and drive passive speakers to produce sound. Typically installed in the weak current wells of various buildings or floors, or housed in outdoor enclosures.
FEATURES
|
Model |
AMP-IP1-60 |
AMP-IP1-120 |
|
Power Consumption |
60W |
120W |
|
Ethernet Port |
1× 100 Mbps RJ45 |
|
|
EMC Control |
1× 3-pin Phoenix connector for a 24V DC output and a short circuit output |
|
|
Audio Input |
1× RCA (L+/R+), 0 dBu, 10 kΩ |
|
|
Audio Output |
1× RCA (L+/R+), -10–0 dBu, 10 kΩ |
|
|
Frequency Response |
120 Hz–16 kHz |
|
|
Input Sensitivity |
0 dBu |
|
|
Signal-to-noise Ratio (SNR) |
> 90 dB |
|
|
Volume Adjustment |
1× volume control knob for local control Software control with Audio Control System or App |
|
|
Upgrade |
Local upgrade via an IP file; OTA via Audio Control System |
|
|
Rated Voltage |
70/100 V, 1× DIP switch |
|
|
VAC Input Voltage |
90–240 V AC, 50/60 Hz |
|
|
Operating Temperature |
-20–50℃ (-4–122℉) |
|
|
Storage Temperature |
-40–60℃ (-40–140℉) |
|
|
Operating Humidity |
<90% RH (non-condensing) |
|
|
Protection |
Surge (of ±6 kV), short circuit, over current, over temperature |
|
|
Appearance |
Black, aluminum alloy brushed panel |
|
|
Dimension (W×H×D) |
1RU, 485×44×303 mm |
|
|
Weight |
4.8 kg |
5.6 kg |
*The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
