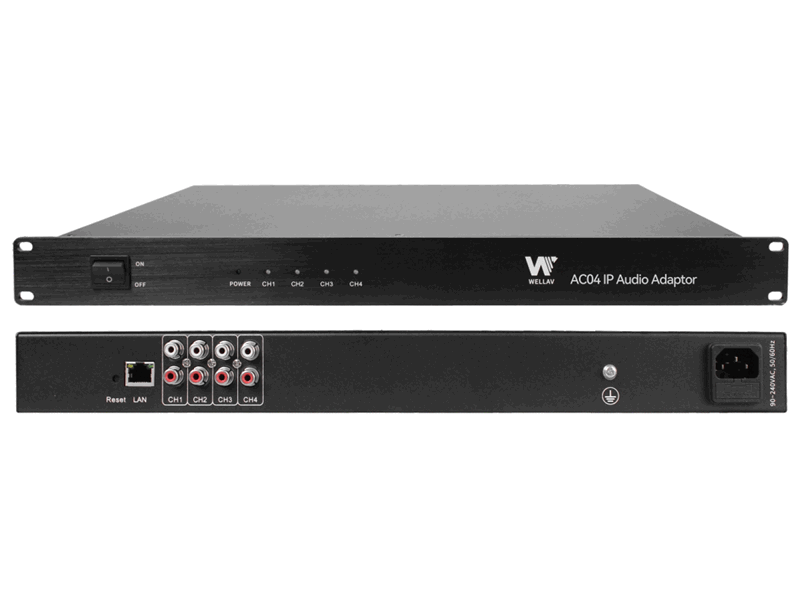

AC04
Deployed in the main control room, the IP audio adaptor communicates with the broadcast host via IP network to convert analog audio sources (microphones, DVD/MP3 players, etc.) into digital signals for centralized scheduling and control by the host.
FEATURES
|
4x RAC (R+/L+), CH1~CH4 |
|
|
Bitrate |
8–768 Kbps |
|
Ethernet Interface |
1x RJ45 (10/100 Mbps) |
|
Protocol |
HTTP/HTTPS, TCP/IP, UDP, ARP, ICMP, IGMP, RTSP |
|
Sampling Rate |
48 kHz |
|
Input Sensitivity |
0 dBu |
|
Signal-to-noise Ratio (SNR) |
70 dB |
|
Indicator |
5 (for Power, CH1~CH4) |
|
Power Requirement |
90–240 V AC, 50/60 Hz |
|
Power Consumption |
Max. 20 W |
|
Operating Temperature |
-10–45℃ (14–113℉) |
|
Storage Temperature |
-20–60℃ (-4–140℉) |
|
Operating Humidity |
<90% RH |
|
Color |
Black, aluminum alloy shell |
|
Dimension (W×H×D) |
483x44x270 mm |
|
Weight |
2.85 kg |
*The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
